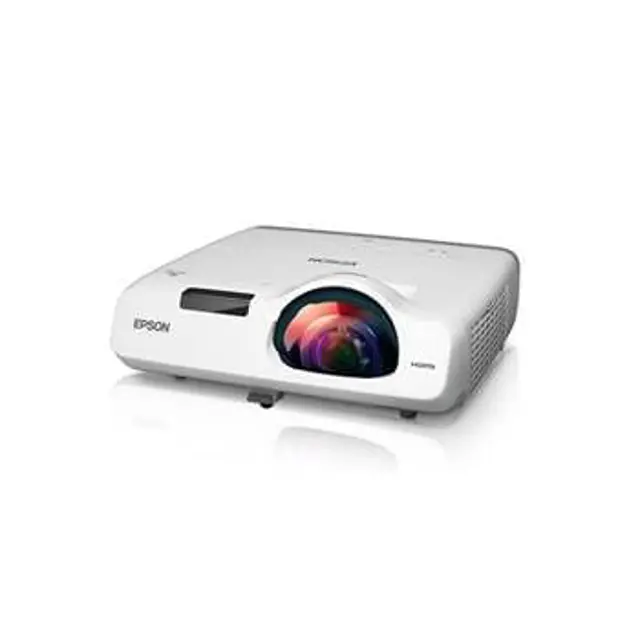

Epson Multimedia Projector EB-536Wi

Create an account to install this asset package.

Maintenance Plans for Epson Multimedia Projector Model EB-536Wi

Integrate maintenance plans directly into your work orders in MaintainX.

4900 Hourly Lamp Replacement

It is time to replace the lamp when:

The following message is displayed. "Time to replace the lamp. Please contact your Epson projector reseller or visit www.epson.com to purchase." The message is displayed for 30 seconds.

The power indicator is flashing blue, and the lamp indicator is flashing orange.

The projected image gets darker or starts to deteriorate.

Attention!

The lamp replacement message is set to appear after the following time periods in order to maintain the initial brightness and quality of the projected images.

When Power Consumption is set to Normal: About 4,900 hours

When Power Consumption is set to ECO: About 9900 hours

If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases.

Run this procedure

Air Filter Replacement

Air Filter Replacement Period

If the message is displayed frequently even though the air filter has been cleaned, replace the air filter.

How to Replace the Air Filter

The air filter can be replaced even when the projector is suspended from a wall or ceiling.

1. After you turn off the projector's power and the confirmation buzzer beeps twice, disconnect the power cord.

2. Open the air filter cover. Place your finger into the grove at the top of the air filter cover, and pull down to open.

3. Remove the air filter. Grip the tab in the center of the air filter, and pull the air filter straight out.

4. Install the new air filter.

5. Close the air filter cover.

Run this procedure

3 Monthly Projector Parts Cleaning

You should clean the projector if it becomes dirty or if the quality of projected images starts to deteriorate.

Caution!

Before cleaning, turn off the projector's power and unplug the power cable. Otherwise, it could cause an electric shock.

Cleaning the Projector's Surface

Clean the projector's surface by wiping it gently with a soft cloth.

If the projector is particularly dirty, moisten the cloth with water containing a small amount of neutral detergent, and then firmly wring the cloth dry before using it to wipe the projector's surface.

Attention!

Do not use volatile substances such as wax, alcohol, or thinner to clean the projector's surface. The quality of the case may change or become discolored.

Cleaning the Lens

Run this procedure
