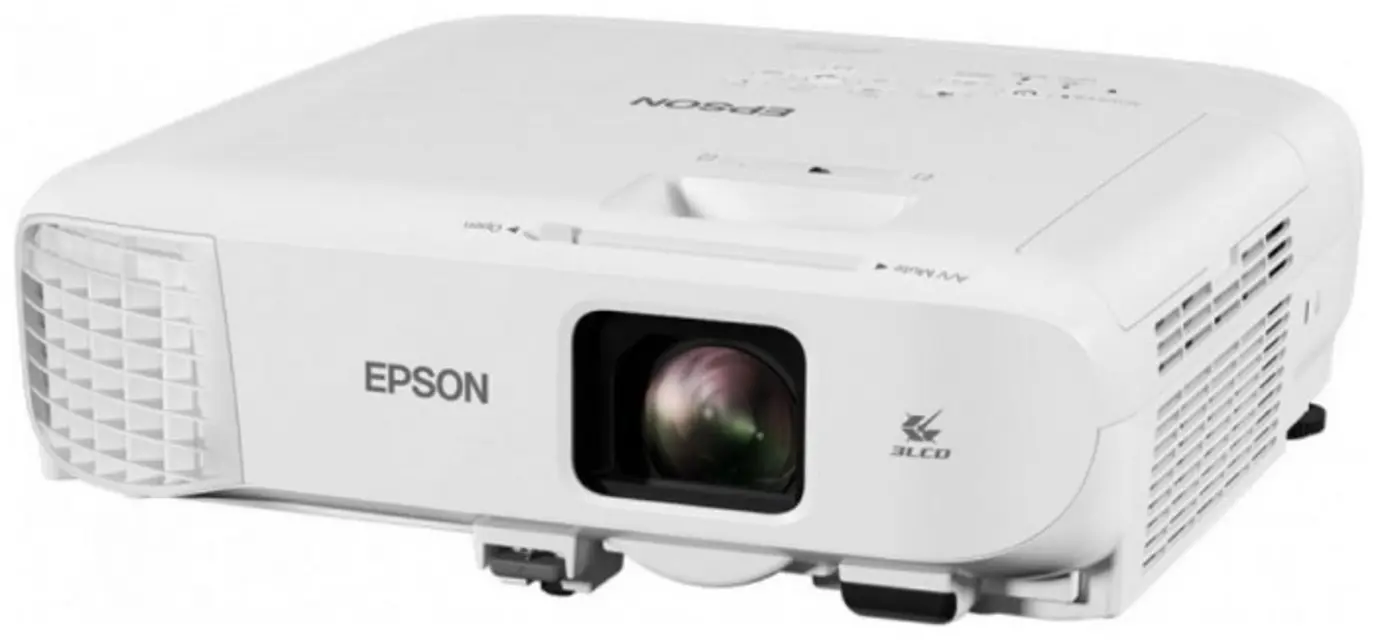

Epson Multimedia Projector EB-E20

Warning: The lamp may explode if used past the replacement period. Always replace the lamp as soon as the replacement message appears.

Warning: Do not repeatedly turn off and on the projector. This may shorten the lamp's operating life.

Warning: Always have a spare lamp unit ready.

Warning: Use of non-genuine lamps may affect projection quality and safety. Damage or malfunction caused by non-genuine lamps may not be covered by warranty.

Warning: Let the lamp fully cool before replacing it to avoid injury. Never disassemble or modify the lamp.

Is the projector turned off and unplugged?

Has the projector lamp cooled down for at least one hour?

Did you use the screwdriver included with the replacement lamp to loosen the screw securing the lamp cover?

Warning: When replacing the lamp, there is a possibility that the lamp may be broken. Stand to the side of the lamp cover, not underneath it.

Warning: Ensure the projector is turned off and unplugged before starting the procedure.

Is the air filter torn or damaged?

If the air filter is not damaged, stop the procedure.

Upload a photo of the damaged air filter.

Did you dispose of the used air filter according to local regulations?

Upload a photo of the new air filter in place.

Sign off on the air filter replacement.

Is the projector turned off and unplugged?

Upload a photo of the dusty air filter or vents

Was the dust gently removed using a small vacuum or a very soft brush?

Attention! Do not use canned air. The gases may leave a flammable residue or push dust and debris into the projector's optics or other sensitive areas.

Is dust difficult to remove or the air filter is damaged?

If dust is difficult to remove or the air filter is damaged, replace the air filter.

Sign off on the air filter and vents cleaning

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface.

Is the projector turned off and unplugged?

If the lens is dusty, blow off dust using a blower, and then wipe the lens.

Warning: Do not use any flammable gas sprays such as air dusters to blow off dust. The high heat generated by the projector may cause a fire.

Attention: Do not wipe the lens right after you turn off the projector. Doing so could damage the lens.

Do not use any harsh materials to clean the lens and do not subject the lens to any impacts; otherwise, it could be damaged.

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Projector turned off and power cord unplugged

To remove dust or dirt, use a soft, dry, lint-free cloth.

Dust and dirt removed with a soft, dry, lint-free cloth

To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid directly on the projector.

Stubborn dirt removed with a soft cloth moistened with water and mild soap

Attention! Do not use wax, alcohol, benzene, paint thinner, or other chemicals to clean the projector case. These can damage the case. Do not use canned air, or the gases may leave a flammable residue.

Did you avoid using wax, alcohol, benzene, paint thinner, or other chemicals to clean the projector case?

Did you avoid using canned air?
