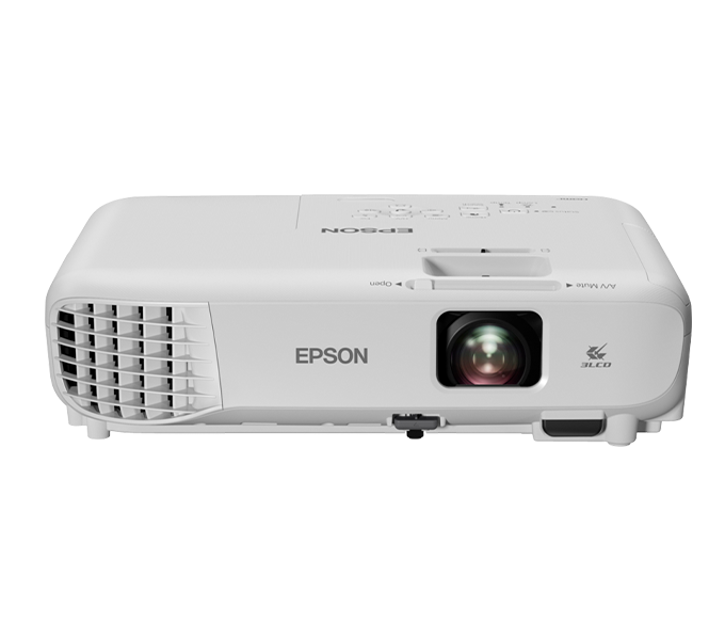

Epson Multimedia Projector EB-X06

Warning: Ensure the projector is turned off and unplugged before starting the procedure.

Is the air filter torn or damaged?

If the air filter is not damaged, stop the procedure.

Upload a photo of the damaged air filter.

Did you dispose of the used air filter according to local regulations?

Upload a photo of the new air filter in place.

Sign off on the air filter replacement.

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Projector turned off and power cord unplugged

To remove dust or dirt, use a soft, dry, lint-free cloth.

Dust and dirt removed with a soft, dry, lint-free cloth

To remove stubborn dirt, use a soft cloth moistened with water and mild soap. Do not spray liquid directly on the projector.

Stubborn dirt removed with a soft cloth moistened with water and mild soap

Attention! Do not use wax, alcohol, benzene, paint thinner, or other chemicals to clean the projector case. These can damage the case. Do not use canned air, or the gases may leave a flammable residue.

No prohibited cleaning materials used

Sign off on the projector case cleaning

Warning: Before cleaning any part of the projector, turn it off and unplug the power cord. Never open any cover on the projector, except as specifically explained in this manual. Dangerous electrical voltages in the projector can injure you severely.

Projector turned off and power cord unplugged

Clean the projector's lens periodically, or whenever you notice dust or smudges on the surface.

Lens cleaned with clean and dry lens-cleaning paper

If the lens is dusty, blow off dust using a blower, and then wipe the lens.

Warning: Do not use any flammable gas sprays such as air dusters to blow off dust. The high heat generated by the projector may cause a fire.

Attention: Do not wipe the lens right after you turn off the projector. Doing so could damage the lens.

Is the projector turned off and unplugged?

Upload a photo of the dusty air filter or vents

Was the dust gently removed using a small vacuum or a very soft brush?

Attention! Do not use canned air. The gases may leave a flammable residue or push dust and debris into the projector's optics or other sensitive areas.

Is the dust difficult to remove or the air filter is damaged?

If dust is difficult to remove or the air filter is damaged, replace the air filter.

Sign off on the air filter and vents cleaning

Warning: This procedure requires careful handling of the projector lamp. Ensure you have read and understood all the steps before proceeding.

Is the projected image darker or quality declined?

Is there a message displayed when you turn on the projector telling you to replace the lamp?

Is the projector's power indicator flashing blue and its lamp indicator flashing orange?

Warning: If you continue to use the lamp after the replacement period has passed, the possibility that the lamp may explode increases.

Warning: Do not repeatedly turn off the power and then immediately turn it back on. This may shorten the lamp's operating life.

Warning: Always have a spare lamp unit ready in case it is needed.

Warning: We recommend the use of genuine Epson replacement lamps. The use of non-genuine lamps may affect projection quality and safety.

Warning: Let the lamp fully cool before replacing it to avoid injury.
