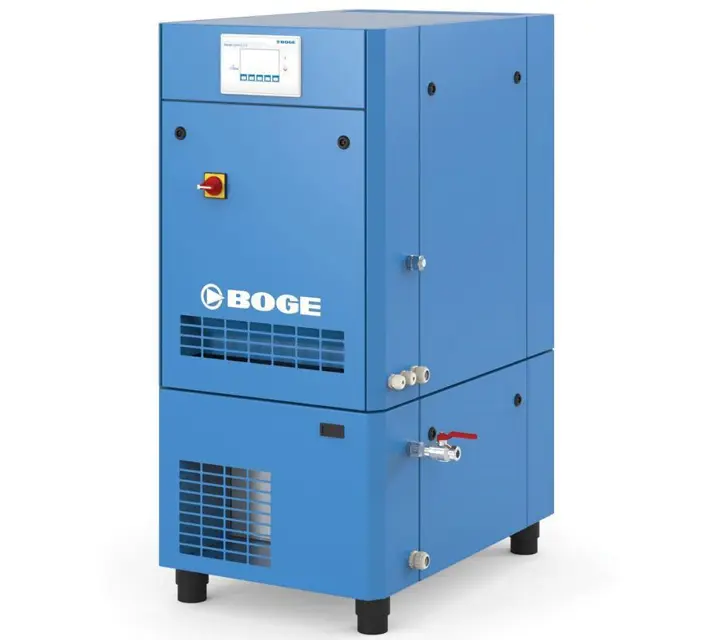

Otto Boge Scroll Compressor EO 17D

Create an account to install this asset package.

Maintenance Plans for Otto Boge Scroll Compressor Model EO 17D

Integrate maintenance plans directly into your work orders in MaintainX.

5000 Hourly/2 Yearly Cooling Air Fan Maintenance

Warning: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Depressurise the system.

Remove the right side panel of the housing and the isolating protective equipment.

Remove the V-belts.

Loosen the screws on the scroll compressor fan covers and remove the covers.

Check the fans and clean if necessary.

Run this procedure

3000 Hourly/1 Yearly Compressor Safety Valve Check

WARNING

Risk of injury from flying parts caused by overpressure, e.g., burst components bursting or detonating!

Risk of injury due to sudden discharge of hot compressed air!

It is forbidden to operate the compressor without the installed safety devices.

A safety valve prevents inadmissible overpressure.

The specified final compression pressure must not be exceeded.

Observe the statutory regulations applicable in the installation location for operating safety devices against overpressure.

Have the function of the safety valve checked exclusively by BOGE Service personnel.

Interval: After approx. 3000 operating hours but at least once a year.

Run this procedure

10000 Hourly/4 Yearly Cooling Air Fan Maintenance

WARNING: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Depressurise the system.

Remove the right side panel of the housing and the isolating protective equipment.

Remove the V-belts.

Loosen the screws on the scroll compressor fan covers and remove the covers.

Check the fans and clean if necessary.

Run this procedure

15000 Hourly/6 Yearly Scroll Compressor Maintenance

Warning: Scroll compressor replacement should be done by BOGE Service personnel only.

Enter the operating hours of the 10 bar compressor
