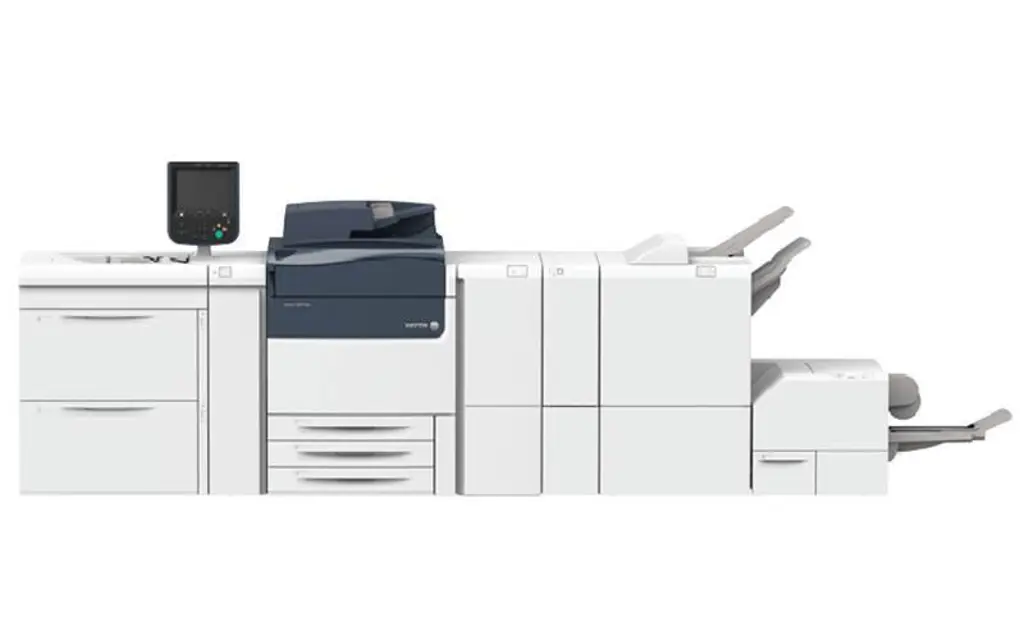

Xerox Holdings Digital Color Press V180

Before you start to clean the press, be sure to switch off the power using the rear breaker switch and unplug the press.

Cleaning the press without switching off the power may cause an electric shock.

• Always use a dry lint-free cloth for all cleaning actions unless otherwise directed.

• Do not use benzene, paint thinner, other volatile liquids, or spray insect repellent on the press as doing so may discolor, deform, or crack covers.

• If a moistened cloth is used, wipe afterwards with a dry lint-free cloth.; Cleaning the press with an excessive amount of water may cause the press to malfunction and/or damage documents during printing.

1. Wipe the exterior with a soft cloth moistened with water. If dirt is difficult to remove, try gently wiping with a soft cloth moistened with a small amount of neutral detergent.

2. Wipe off any excess water from the exterior with a soft cloth.;

Warning: Make sure the press is powered off before performing this procedure.

At the back of the press, locate the Suction filter cover on the lower panel.

Use the Torx driver to remove the screw on the right side of the cover by turning the screw counterclockwise.

Pull out and remove the Suction Filter Cover.

Grasp the handle of the filter box and pull straight out.

Remove the Suction filter out of the box.

Place the new Suction filter into the box and push the tray back in until it stops and is flush with the press.

Place the cover back onto the filter box area. Make sure to first insert the left two tabs of the cover into the left side of the box area. Then push the entire cover flush to the press.

Insert the Torx driver with the screw attached into the cover and turn clockwise to tighten.

Before you start to clean the press, be sure to switch off the power using the rear breaker switch and unplug the press.; Cleaning the press without switching off the power may cause an electric shock.

• Always use a dry lint-free cloth for all cleaning actions unless otherwise directed.

• Do not use benzene, paint thinner, other volatile liquids, or spray insect repellent on the press as doing so may discolor, deform, or crack covers.

• If a moistened cloth is used, wipe afterwards with a dry lint-free cloth.; Cleaning the press with an excessive amount of water may cause the press to malfunction and/or damage documents during printing.

- Cleaning the Document Feeder Rollers

1. Gently lift the latch of the document feeder top cover until it is open completely in a fixed position.

2. While turning the rollers, gently clean them with a soft cloth moistened with water.

Caution! Use a cloth that has been thoroughly wrung to prevent drops of water falling into the machine.

Drops of water on internal components may cause a malfunction.

Warning: This procedure requires trained personnel with PPE!

Note: The Fuser Module may be replaced by the customer only if directed to do so by Service.

Note: Store supply items and Xerox parts in their original packages in a convenient location. Always recycle/dispose the used CRU according to the disposal instructions supplied with the new CRU.

Note: The cleaning pads used with the ROS Window cleaning wand are not orderable. Contact your Xerox representative for any additional cleaning pads.

Caution! Do not leave the Drum Cartridge Drawer open for more than one minute. Exposing the drum cartridges to direct sunlight or strong light from indoor fluorescent lighting for more than one minute may cause image quality defects.

Caution! Replace drum cartridges while the press is powered ON.

Ensure that the press is stopped and is not currently printing jobs.

Rotate and turn the R1-R4 Drum Drawer Handle to the unlock position.

Warning: This procedure requires trained personnel with PPE!

Ensure that the press is stopped (not running any jobs).

Open the front door of the press.

Open the Dry Ink/Toner Waste Bottle Door.

Grasp the handle of the Dry Ink/Toner Waste bottle and pull it halfway out of the press.

Support the underside of the bottle with your other hand and continue pulling it out from the press.

Caution! Never use a vacuum cleaner when cleaning up spilled dry ink/toner. Use a broom or a cloth moistened with a neutral detergent.

Use both hands to place the old used Dry Ink/Toner Waste Bottle into the provided plastic bag.

Remove a new, empty waste bottle from the packaging.
