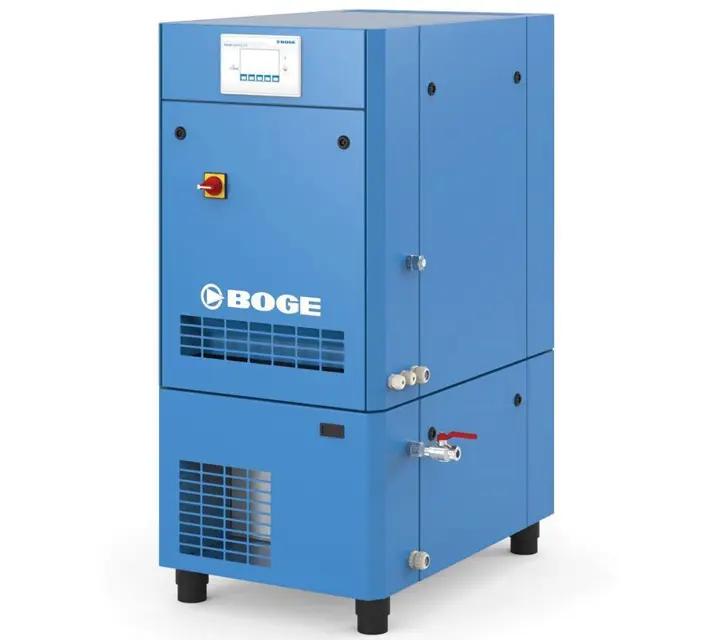

Otto Boge Scroll Compressor EO 17

Check the function of the supply air filter mats in the switch cabinet.

Once per month, however at least every 500 operating hours.

Reduce interval if air is heavily polluted.

Replace the supply air filter mats:

When dirt becomes encrusted on the mats, or at least once a year.

Note: Always keep a sufficient stock filter mats as replacements.

Replacing the supply air filter mat on the switch cabinet:

Switch off the compressor using the OFF button.

DANGER: Danger of death due to electric current! Coming into contact with live parts, defective insulation or components can be fatal. Open the mains disconnecting device and secure against accidental switching on again using a padlock.

WARNING: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Remove the service side cladding.

Loosen all four motor fastening screws (2).

Turn the belt tensioning screw (1) anti-clockwise.

Warning: Risk of injury due to sharp edges, hot surfaces and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Remove all the safety claddings necessary for maintenance work.

Open the respective housing panel. Secondary cooler: remove the housing panel above the operating elements / control.

ATTENTION: Danger of property damage! Do not use sharp objects to clean the cooler. They may damage the cooler.

Clean off the accumulated soiling with a fibre brush.

Primary cooler: suck out any dirt from the system in the same direction as the normal flow of cooling air. Do not under any circumstances blow dirt into the system using compressed air.

Warning: Scroll compressor replacement should be done by BOGE Service personnel only.

Enter the operating hours of the compressor

Sign off on the compressor maintenance

Warning: This maintenance check requires trained personnel with PPE!

Is the condensate drain operational?

If the condensate drain is not operational, report the issues to the maintenance team and stop the procedure

Upload a photo of the condensate drain before maintenance

Were the wearing parts replaced?

Upload a photo of the condensate drain after maintenance

Sign off on the condensate drain maintenance
