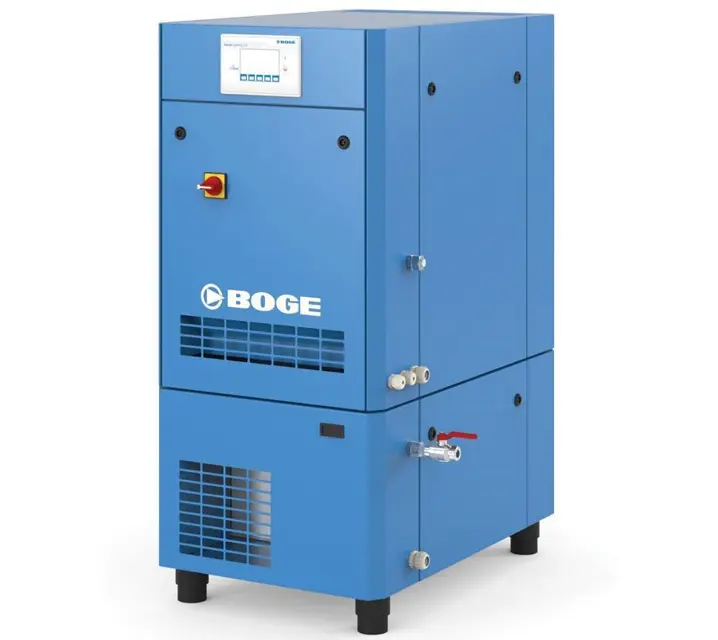

Otto Boge Scroll Compressor EO 6D

Create an account to install this asset package.

Maintenance Plans for Otto Boge Scroll Compressor Model EO 6D

Integrate maintenance plans directly into your work orders in MaintainX.

20000 Hourly/8 Yearly Scroll Compressor Maintenance

Warning: Scroll compressor replacement should be done exclusively by BOGE Service personnel.

Enter the operating hours of the compressor

Select the type of compressor

Was the compressor replaced?

Sign off on the compressor maintenance

Run this procedure

3000 Hourly/1 Yearly Compressor Safety Valve Check

WARNING

Risk of injury from flying parts caused by overpressure, e.g., burst components bursting or detonating!

Risk of injury due to sudden discharge of hot compressed air!

It is forbidden to operate the compressor without the installed safety devices.

A safety valve prevents inadmissible overpressure.

The specified final compression pressure must not be exceeded.

Observe the statutory regulations applicable in the installation location for operating safety devices against overpressure.

Have the function of the safety valve checked exclusively by BOGE Service personnel.

Interval: After approx. 3000 operating hours but at least once a year.

Run this procedure

500 Hourly/1 Monthly Supply Air Filter Cabinet Maintenance

Check the function of the supply air filter mats in the switch cabinet.

Once per month, however at least every 500 operating hours.

Reduce interval if air is heavily polluted.

Replace the supply air filter mats:

When dirt becomes encrusted on the mats, or at least once a year.

Note: Always keep a sufficient stock filter mats as replacements.

Replacing the supply air filter mat on the switch cabinet:

Switch off the compressor using the OFF button.

DANGER: Danger of death due to electric current! Coming into contact with live parts, defective insulation or components can be fatal. Open the mains disconnecting device and secure against accidental switching on again using a padlock.

Run this procedure

Motor Bearing Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Enter the ambient temperature

Motor bearings are within their service lives?

Describe any issues found during the check

Sign off on the motor bearing maintenance

Run this procedure

3000 Hourly/1 Yearly Suction Filter Maintenance

Change the suction filter cartridge:

– If damaged.

– After it has been cleaned twice.
