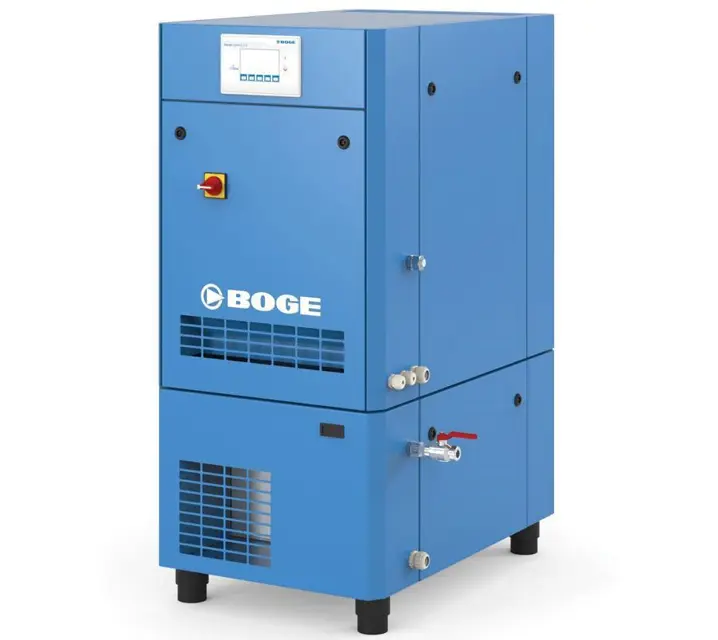

Otto Boge Scroll Compressor EO22N

Create an account to install this asset package.

Maintenance Plans for Otto Boge Scroll Compressor Model EO22N

Integrate maintenance plans directly into your work orders in MaintainX.

5000 Hourly/2 Yearly Cooling Air Fan Maintenance

Warning: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Depressurise the system.

Remove the right side panel of the housing and the isolating protective equipment.

Remove the V-belts.

Loosen the screws on the scroll compressor fan covers and remove the covers.

Check the fans and clean if necessary.

Run this procedure

Motor Bearing Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Enter the ambient temperature

Motor running under normal operating conditions?

If motor is not running under normal conditions, report the issues to the maintenance team and stop the procedure

Choose the type of service done

Motor's hour meter reading

Motor passed the post-maintenance test?

Issues found during the test

Sign off on the motor bearing maintenance

Run this procedure

5000 Hourly/2 Yearly Scroll Compressor Maintenance

10 bar compressor: After 5,000 operating hours but after two years at the latest.

8 bar compressor: After 10,000 operating hours but after four years at the latest.

Have the following maintenance work on the scroll compressors carried out exclusively by BOGE Service personnel.

The following work must be carried out:

– Replace "Tip Seal" sealant on scroll compressor

– Service / lubricate scroll compressor bearing

– Clean cooling fins on scroll compressor.

Run this procedure

1 Yearly Condensate Drain Maintenance

Warning: This maintenance check requires trained personnel with PPE!

Is the condensate drain operational?

If the condensate drain is not operational, report the issues to the maintenance team and stop the procedure

Upload a photo of the condensate drain before maintenance

Did you replace the set of wearing parts?

Upload a photo of the condensate drain after maintenance

Sign off on the condensate drain maintenance

Run this procedure

10000 Hourly/4 Yearly V-Belt Maintenance

Warning: Risk of injury due to sharp edges, hot surfaces, overpressure and exposure to dust! This maintenance work should only be carried out by authorised and qualified personnel. Wear PPE.

Switch off the compressor using the OFF button.

Open the mains disconnecting device and secure it to prevent it being switched on again.

Allow all hot compressor components to cool to 50°C.

Depressurise the system.

Remove the service side cladding.

Remove the belt protection.

Loosen all four motor fastening screws (2).

Turn the belt tensioning screw (1) anti-clockwise.

Run this procedure
