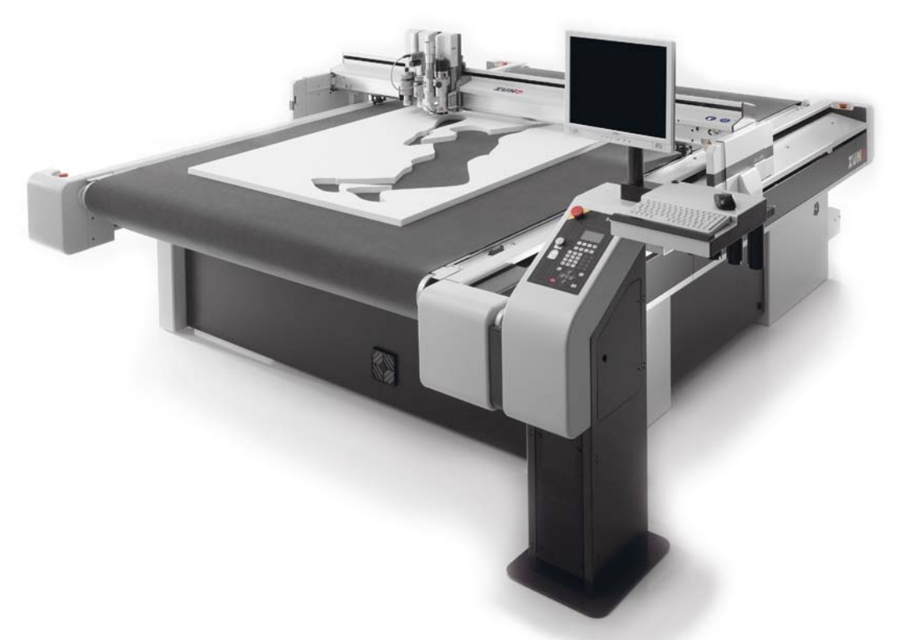

Zünd Systemtechnik Digital Flatbed Cutter M-2500

Warning: This maintenance check requires trained personnel with PPE!

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Clean rubber cushions/needle cushions* of the feed elements

If necessary, top up oil according to specifications

Sign off on the machine maintenance

This procedure describes all the maintenance jobs required for the machine.

Maintenance jobs that operators can carry out themselves are specially indicated.

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik.

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Push the module carriage to the right until it stops.

Place a cardboard base or drip tray under the module.

Use the oiler to apply a drop of oil to the lubrication points.

Use a lint-free cloth to remove excess oil from the module carriage.

Sign off on the bearing lubrication procedure.

– This chapter describes (in tabular form) all the maintenance jobs which are required for the machine

– The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual

– Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter. Important!

In general, no special tools are required for maintenance jobs that operators can carry out themselves

• All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Warning: Only authorized personnel should perform this procedure.

Important: Do not exceed the specified maintenance and cleaning intervals.

Disposal: The condensation liquid from the water separator is contaminated with oil. Dispose of it correctly according to the specific national regulations.

Main switch of the maintenance unit set to Off?

Container held under the drain?

Liquid allowed to drip into the container?

Sign off on the draining procedure

General: This chapter describes all the maintenance jobs required for the machine. The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual.

Important: In general, no special tools are required for maintenance jobs that operators can carry out themselves. All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik.

Important: Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Visually check the machine for damage

Free the machine of dust and processing residue

Check electrical equipment (options) to ensure they function

Check correct functioning of the emergency stop switch

Check all safety devices (correct functioning of light barriers, protective trip switch)

Use a vacuum clean to extract chips and dust from the brushes
