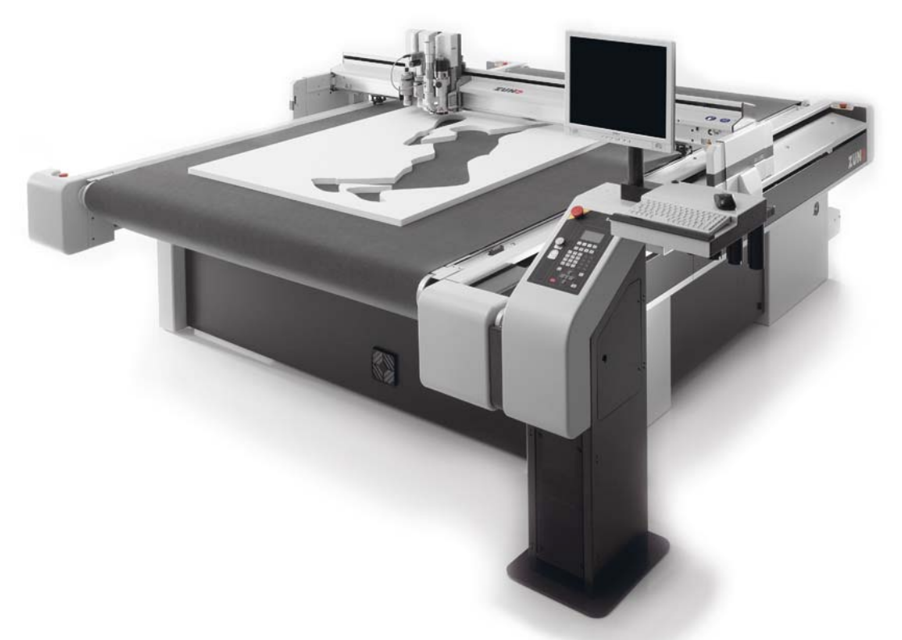

Zünd Systemtechnik Digital Flatbed Cutter XL-1600

This chapter describes (in tabular form) all the maintenance jobs which are required for the machine

The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual

Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter. Important!

In general, no special tools are required for maintenance jobs that operators can carry out themselves

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Check water separator and drain water if necessary

This procedure describes all the maintenance jobs required for the machine

Maintenance jobs that operators can carry out themselves are specially indicated

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Push the module carriage to the right until it stops

Place a cardboard base or drip tray under the module

Use the oiler to apply a drop of oil to the lubrication points

Use a lint-free cloth to remove excess oil from the module carriage

Sign off on the bearing lubrication

Warning: This maintenance check requires trained personnel with PPE!

Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter.

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik.

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Undo the tensioning screws on both sides

Cut the conveyor belt using scissors and remove it

Dispose of the conveyor belt correctly

Lift the covers (1 x front, 1 x rear) and remove from the guide

Unroll the conveyor belt as shown in Fig. 7-19. A stamp is located on the front upper side. The points in the feed direction

Warning: This maintenance check requires trained personnel with PPE!

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Check correct functioning of the emergency stop

Check all safety devices (correct functioning of light barriers, protective trip switch)

Check all screw connections and tighten according to requirements if necessary

Check cabling/wiring and cable routing for signs of wear

Check levelling and adjust if required

Warning: This maintenance check requires trained personnel with PPE!

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Visually check the machine for damage

Free the machine of dust and processing residue

Check electrical equipment (options) to ensure they function

Check correct functioning of the emergency stop switch

Check all safety devices (correct functioning of light barriers, protective trip switch)

Use a vacuum clean to extract chips and dust from the brushes

Sign off on the machine maintenance
