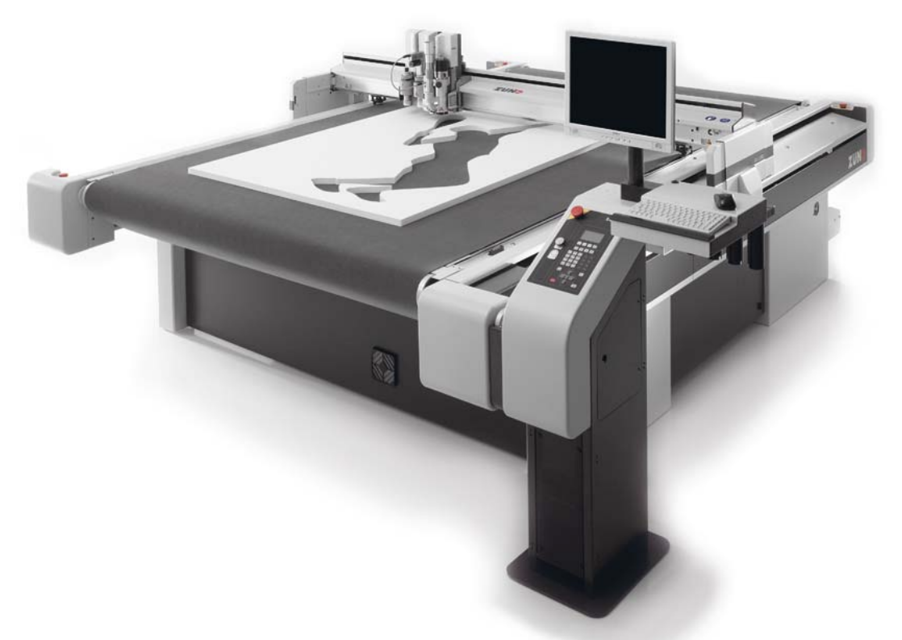

Zünd Systemtechnik Digital Flatbed Cutter L-2500

This procedure describes all the maintenance jobs required for the machine

Maintenance jobs that operators can carry out themselves are specially indicated

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Push the module carriage to the right until it stops

Place a cardboard base or drip tray under the module

Use the oiler to apply a drop of oil to the lubrication points

Use a lint-free cloth to remove excess oil from the module carriage

Sign off on the monthly bearing lubrication

This procedure describes all the maintenance jobs required for the machine. No special tools are required for maintenance jobs that operators can carry out themselves. All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik. Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion.

Clean rubber cushions/needle cushions of the feed elements

If necessary, top up oil according to specifications

Sign off on the weekly digital flatbed cutter maintenance

– This chapter describes (in tabular form) all the maintenance jobs which are required for the machine

– The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual

– Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter. Important!

In general, no special tools are required for maintenance jobs that operators can carry out themselves

• All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

- Undoing the tensioning screws!

– This chapter describes (in tabular form) all the maintenance jobs which are required for the machine

– The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual

– Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter. Important!

In general, no special tools are required for maintenance jobs that operators can carry out themselves

• All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

This chapter describes (in tabular form) all the maintenance jobs which are required for the machine

The maintenance list only affects the basic unit. Maintenance activities for modules, tool inserts and options can be found in the respective operating manual

Maintenance jobs that operators can carry out themselves are specially indicated and are described in more detail in this chapter. Important!

In general, no special tools are required for maintenance jobs that operators can carry out themselves

All other jobs must be undertaken only by personnel authorised by Zünd or by Zünd Systemtechnik Customer Services or by contractual partners authorised by Zünd Systemtechnik

Do not exceed the specified maintenance and cleaning intervals. You can shorten these intervals if necessary at your own discretion

Check water separator and drain water if necessary
