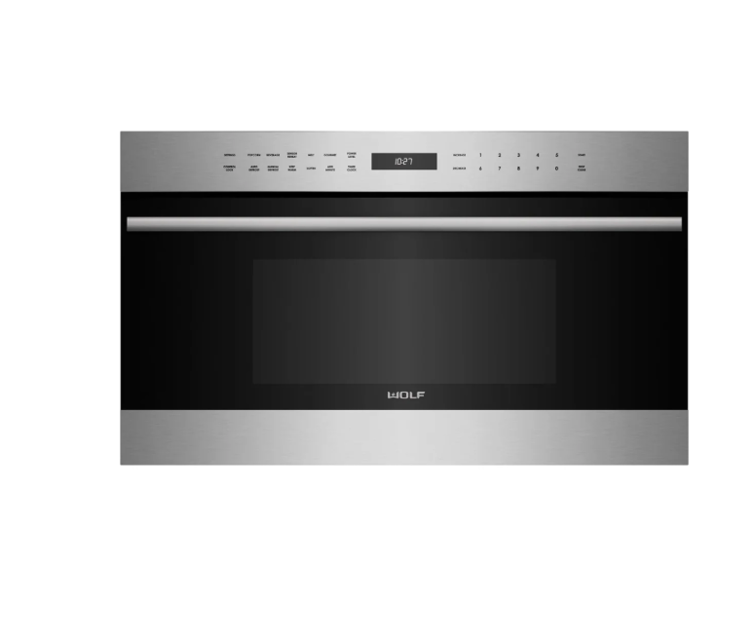

Wolf Cooking Equipment MDD30TM/S/TH

Extract screws from the outer wrapper using a T-20 Security Torx drive

Use a T-20 Torx drive to extract the screw from the HV capacitor band

Use a T-25 Torx drive to extract the handle screws

Remove the complete handle assembly

Refer to Figure 3-12 for guidance

Uninstall or pull the microwave forward three inches

Use a T-20 Security Torx drive to extract screw from the center of the control cover

Use a T-20 Torx drive to extract screws from the left and right side of the control cover

Use a T-20 Torx drive to extract the screws from the side of the control panel assembly

Pull the control panel assembly forward

Disconnect the ribbon cable from the control panel assembly

Disconnect the black wire from the L terminal on the noise filter board

Disconnect the white wire from the N terminal on the noise filter board

Use a T-20 Security Torx drive to remove the ground screw

Remove the power cord from the retaining bracket
