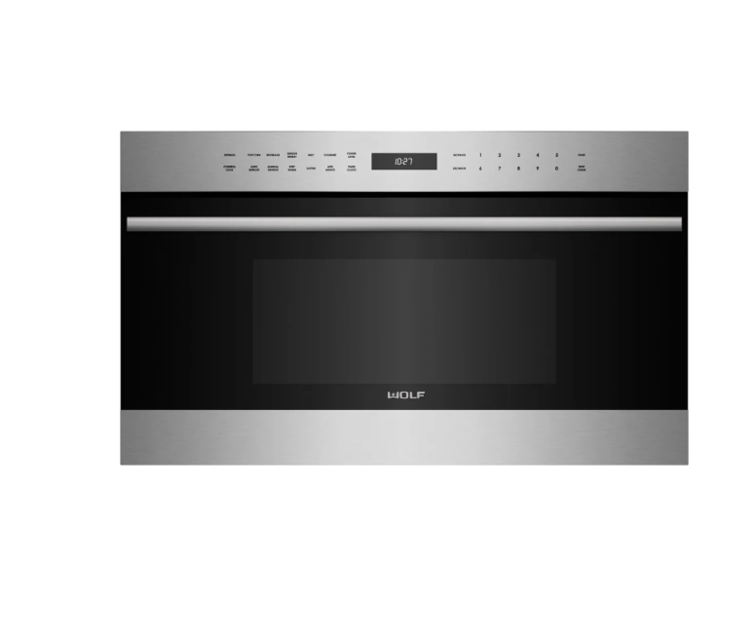

Wolf Cooking Equipment MDD30CM/B/TH

Uninstall the unit to access the back

Use a T-20 Security Torx drive to extract the fan motor screws

Use a T-20 Torx drive to extract the screws holding the fan motor cover to the fan motor

Uninstall or pull the microwave forward eight inches

Use a T-20 Security Torx drive to extract the screw from the latch cover on each side

Open the microwave door and install the shim

Use a T-20 Torx drive to loosen the screw in the SW latch housing

Disconnect the black wire from the L terminal on the noise filter board

Disconnect the white wire from the N terminal on the noise filter board

Disconnect the red wire from the RED terminal on the noise filter board

Disconnect the double white wire from the WHT terminal on the noise filter board

Use a T-20 Torx drive to extract the screw from the noise filter board

Use a T-15 Torx drive to extract the screws from the door panel

Use a T-25 Torx drive to extract the handle screws

Remove the complete handle assembly

Refer to Figure 3-12 for guidance
