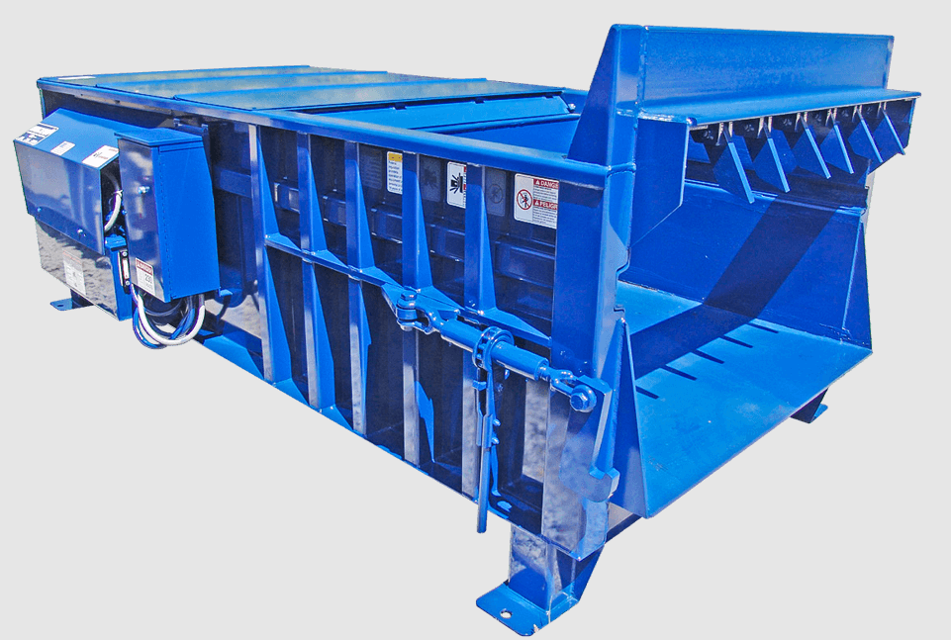

Marathon Electric Motor RJ-275XHD

Install the cylinders by reversing the removal steps

Check that all removed parts are reinstalled correctly

Test the system for proper operation after cylinder installation

Describe any issues encountered during the procedure

WARNING: Never enter any part of the compactor until the unit has been locked-out and tagged-out.

Check functional operation of controls and options (stop button, timers, lights, etc.)

Check hydraulic cylinder for leakage

Inspect internal hoses and connections for leakage

Check hoses for chafing and wear

Ensure the unit is locked-out and tagged-out before starting maintenance

Disconnect the union on the suction side of the pump

Remove the four bolts retaining the suction flange

Lift the filter from the reservoir

Clean the filter element with a soft brush and standard industrial solvent

Mark the ram front position on the compactor side

Power up the Compactor and run the ram forward 3/4” - 1” and stop

Lock-Out and Tag-Out the compactor

Remove the top cover or side access cover to access the upper actuator

Loosen the actuator screws and slide the actuator back against the rear limit switch arm until the limit switch clicks

Ensure the unit has been locked-out and tagged-out before entering any part of the compactor.

Remove access cover(s) on compactors with legs and clean debris from behind the compactor ram.

Replace cover(s) when clean-out is complete.

Open the hinged access cover on each side at the bottom for compactors with skids (RJ-450 and above) and clean out.

Close hinged cover and fasten when clean-out is complete.

Check external hoses for chafing, rubbing, and other deterioration or damage.

Check for any unsafe conditions in the compactor area.
