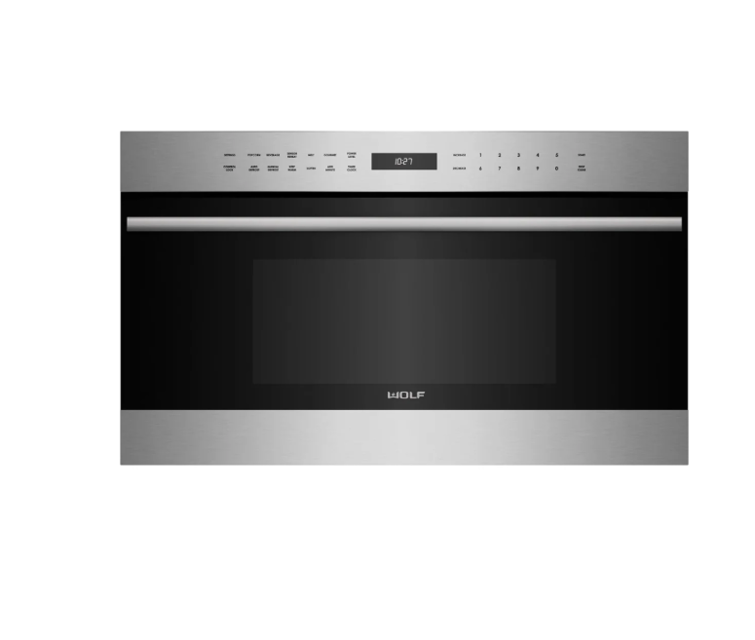

Wolf Cooking Equipment MDD24TE/S/PH

Use a T-20 Torx drive to extract the screws from each hinge

Remove the microwave door and place face down on a protected surface

Use a T-20 Torx drive to extract the screws from the door panel

Check that all screws have been removed

Inspect the removed hinge for any damage

Use a T-10 Torx drive to extract the screws from the power board

Slide the power module up and disengage from the lower tabs

Disconnect the wire harnesses from the power module

Disconnect the HV transformer primary side wires from the terminals

Disconnect the HV transformer secondary wires from the HV capacitor

Disconnect the HV transformer secondary wires from the magnetron

Use a T-25 Torx drive to extract the screws from the HV transformer

Place the microwave on its back on a protected surface

Extract the screws from the bottom cover using a T-20 Security Torx drive

Pull the bottom cover toward the door and disengage the rear tabs

Extract the screws from the turntable motor using a T-20 Torx drive
