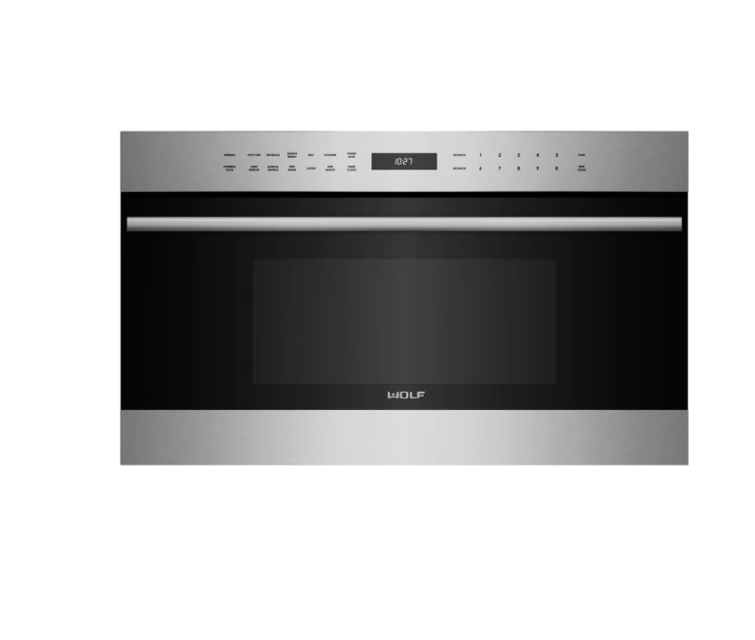

Wolf Cooking Equipment MDD30PM/S/PH

Use a T-15 Torx drive to extract the screws from the door panel

Disconnect the wires from the terminals of the TCO

Use a T-10 Torx drive to extract the screw from the TCO

Pull the TCO from the tab slot and remove the TCO

Use a T-25 Torx drive to extract the handle screws

Remove the complete handle assembly

Remove the door panel using a T-20 Torx drive

Extract the screws from the door panel

Disconnect the wire harnesses from the control board

Disconnect the wire harness from power module

Extract the screws from the bracket using a T-10 Torx drive

Extract the screws from the unit control support using a T-20 Security Torx drive

Rotate the unit control support to expose the underneath
