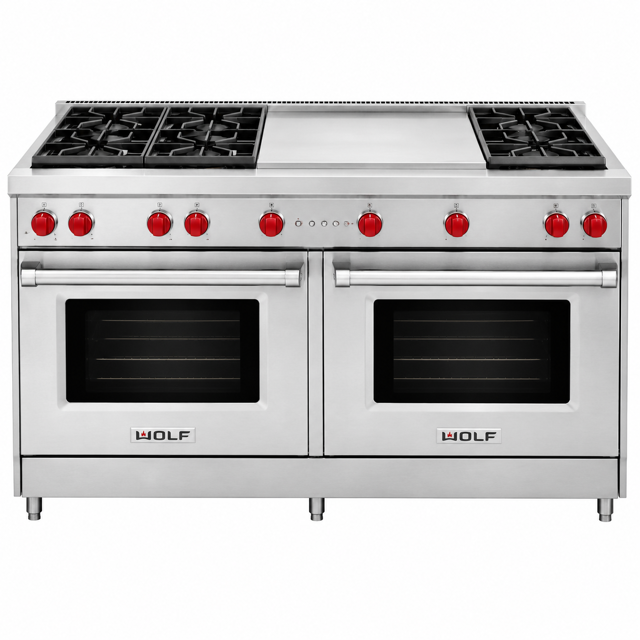

Wolf Gas Range GR606DG

Need answers fast?
Explore the manual using AI.

Wolf Gas Range GR606DG
Wolf Gas Range GR606DG

Turn manuals into instant answers
with your AI-powered assistant
Turn manuals into instant answers
with your AI-powered assistant

MAINTENANCE RESOURCES

Complete asset maintenance, one click away

Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.

Documents

Documents & Manuals

Find all the essential guides in one place.

  • CheckTensioning Guide

  • CheckBelt-diagram

  • CheckC-120 pulleys

  • + 13 more

Work Orders

Work Order Templates

Pre-built workflows to keep your asset running smoothly.

  • CheckDaily Electrical System Inspection

  • CheckReplace Roller and Pulley

  • CheckInstall Engine B-120

  • + 29 more

Procedures

Procedures

Integrate maintenance plans directly into your work orders.

  • CheckMotion Industries

  • CheckApplied Industrial Technologies

  • CheckElectrical Brothers

  • + 5 more

Parts

Parts

Access the parts list for your equipment in MaintainX.

  • CheckDrive Motor

  • CheckB2 Rollers

  • CheckTensioning System

  • + 40 more

Wolf Gas Range GR606DG

Wolf Gas Range GR606DG

Create an account to install this asset package.

Maintenance Plans for Wolf Gas Range Model GR606DG

Integrate maintenance plans directly into your work orders in MaintainX.

Grate Cleaning

Check mark

Preparation

Check mark

Ensure the grate is cool before handling

Check mark

Lift off the grate and set it in the sink

Check mark

Residue Loosening

Check mark

Pour very hot water over the cooked-on residue

Check mark

Cover with wet dish towels

Check mark

Pour more hot water over the towels

Check mark

Allow time for the hot, moist conditions to loosen the residue

Check mark

Cleaning and Finishing

Run this procedureArrow right

Burner Grates Cleaning

Check mark

Preparation

Check mark

Ensure the burner is turned off and cool before cleaning.

Check mark

Gather necessary cleaning materials

Check mark

Cleaning Process

Check mark

Remove the burner grates from the stove.

Check mark

Rinse the grates with hot water.

Check mark

Apply liquid detergent to the grates and scrub with a plastic pad or sponge.

Check mark

Create a paste of baking soda and water and apply to any stubborn stains.

Check mark

Use mild abrasive cleaners sparingly on tough stains.

Run this procedureArrow right

Burner Pan Cleaning

Check mark

Initial Cleaning

Check mark

Wipe with warm water and mild detergent

Check mark

Rinse and dry immediately

Check mark

Degreasing

Check mark

Spray degreaser on a cloth and wipe surface

Check mark

Buff dry immediately to avoid streaking

Check mark

Protective Measures

Check mark

Apply protective polish in the same direction

Check mark

Hard Water Stain Removal

Run this procedureArrow right

Leak Testing

Check mark

Preparation

Check mark

Ensure all gas valves are turned off

Check mark

Prepare a solution of liquid detergent and water

Check mark

Leak Detection

Check mark

Apply detergent solution to the following connections

Check mark

Did bubbles appear around any connections?

Check mark

If a leak was detected, was the gas valve shut off and connections adjusted?

Check mark

Post-Testing Cleanup

Check mark

Clean all detergent solution from the range

Run this procedureArrow right

Burner Cap Cleaning

Check mark

Preparation

Check mark

Ensure the burner cap is cool before cleaning

Check mark

Remove the burner cap from the cooktop and place it on a flat surface near the sink

Check mark

Cleaning Process

Check mark

Wash the burner cap in warm water with liquid detergent or mild abrasive cleaners

Check mark

Check for and remove any food residues that may pit or craze the surface

Check mark

Post-Cleaning

Check mark

Ensure no food residues remain on the burner cap

Check mark

Dry the burner cap thoroughly before reinstallation

Run this procedureArrow right

Parts for Wolf Gas Range GR606DG

Access the parts list for your equipment in MaintainX.

Part Name
Part Number

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993

Burner Valve, 15K, Nat

808016

Orifice, Simmer, .62 mm, Marking 62

804128

Orifice, Main, .67 mm, Marking 67

809495

Burner Valve, 15K, LP

808017

Orifice, Simmer / Main, .43 mm, Marking 43

804993
