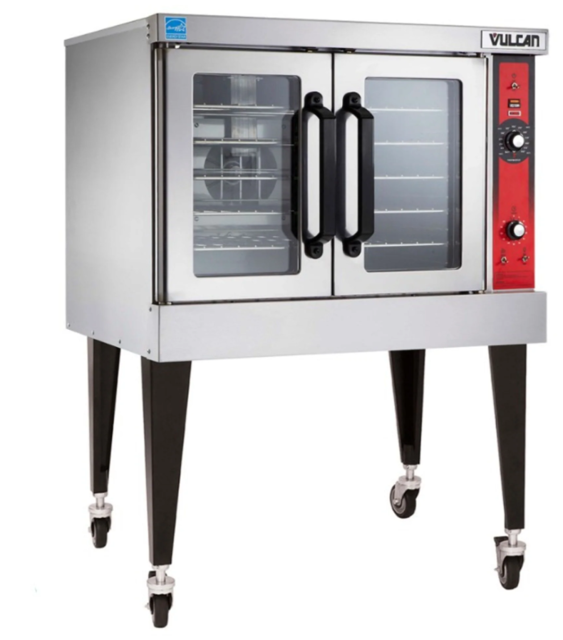

Vulcan Cooking Equipment VC6ED

Remove the screws on the right side securing the control panel

Pull the panel away from the oven

Disconnect the temperature probe leads from the solid state temperature control

Unplug the wire harness connector to the control panel components

Reverse the removal procedure to install the control panel

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Remove racks and right-side hand rack guide.

Grasp lamp using a clean cloth and remove from lamp assembly.

Reverse procedure to install new bulb.

Verify gasket is flat on lamp cover and not damaged.

Open the doors and inspect the door strike for proper shape

Replace and adjust door strike if bent

Open and close the doors several times while observing the catch roller operation

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Lift right side rack guide off oven cavity

Pull lamp cover off from the top or bottom

Insert narrow blade screwdriver into tab and bend out to release

Pull lamp housing out of oven cavity

Remove the screws securing the left side of the top front cover, bottom front cover, and control panel.

Remove the seven screws securing the left side panel.

Pull the left side panel out at the bottom then down to remove.

Installation of Left Side Panel

Reverse the procedure to install the left side panel.
