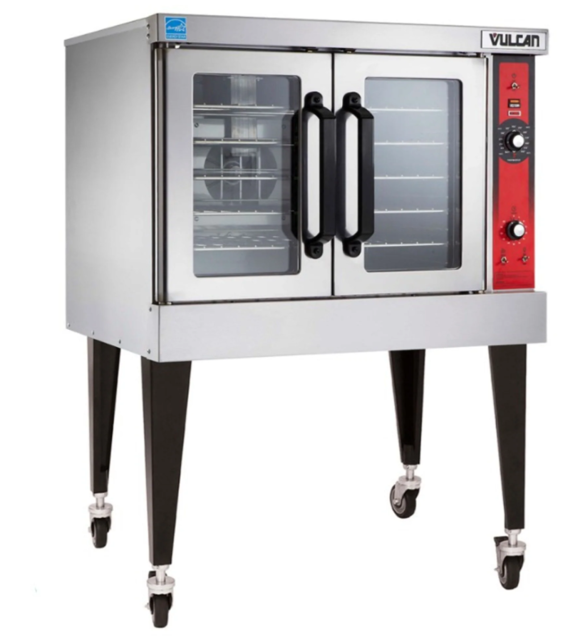

Vulcan Cooking Equipment VC6EC

WARNING: Disconnect the electrical power to the machine and follow lockout/tagout procedures.

Ensure all circuits are disconnected

Remove the top front cover as outlined under COVERS AND PANELS in REMOVAL AND REPLACEMENT OF PARTS.

Independent doors - Verify the switch actuator is operated by the switch lever when the right door is between 1" and 1 1/2" from being closed.

Simultaneous doors - Verify the switch actuator is operated by the switch lever when the right door is 1/2" from being closed.

If adjustment is necessary, bend the switch actuator to obtain the proper setting.

Apply power to the oven and check for proper operation.

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Ensure all circuits are disconnected

Remove the oven racks and rack supports

Remove the "top" door seal from the oven

Determine if the heating element to replace is on the left or right side in the oven cavity

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Unscrew glass lens for the light being replaced

Use a cloth when handling bulb so you do not leave fingerprints on bulb

Loosen screws/bolts on upper door brackets

Adjust door alignment and tighten screws/bolts

Repeat adjustment on opposite door if necessary

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Ensure all circuits are disconnected

Disconnect the lead wires to the door switch
