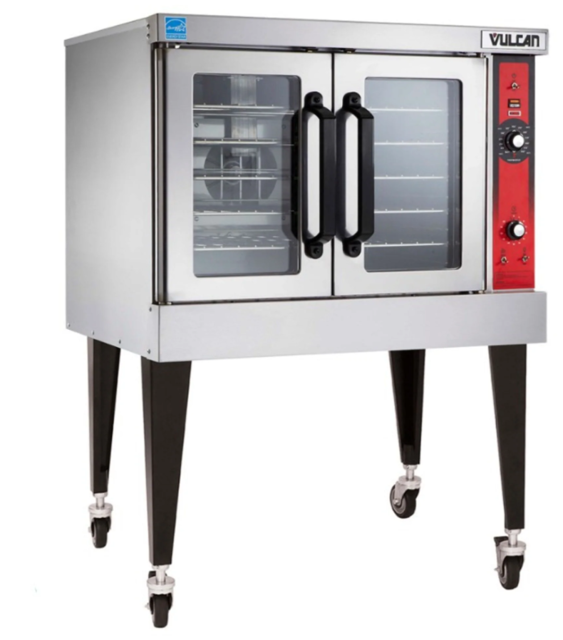

Vulcan Cooking Equipment VC6ES

WARNING: Disconnect the electrical power to the machine and follow lockout/tagout procedures.

Ensure all circuits are disconnected

Remove the high limit thermostat cover/mounting plate from inside the oven cavity at the top

Disconnect lead wires from high limit thermostat

Remove high limit thermostat from cover/mounting plate

Remove the old RTV sealer from the cover and mating surfaces inside the oven cavity

Apply new high temperature RTV sealer before installing

Reverse procedure to install new high limit thermostat

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Ensure all circuits are disconnected

Verify if the oven has 3/4" square holes for easier element removal

Determine if alternate access method is needed based on element removal difficulty

Perform steps 1 thru 4 under FRONT ACCESS

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Remove door switch lever if servicing right side door

Support door while removing hex bolts holding upper bearing retainer and upper shaft bracket

Lift door off lower shaft bracket

Disconnect the electrical power to the machine and follow lockout / tagout procedures

Remove nuts from element wiring connections

Remove element support brackets

Loosen all element mounting plate hex head screws

Slide element mounting plate over to release from cavity wall and remove elements from oven

Use the key sequence to access the calibration mode: Up arrow; Down arrow; Rack 1; Down arrow; Temperature; Rack 1.

Calibration Mode Initial Checks

Verify that the following outputs are turned OFF

Is the default 'no' selected under the 'CALY' parameter?

Change the display to the appropriate number for testing using the arrow keys.

Verify the following control outputs
