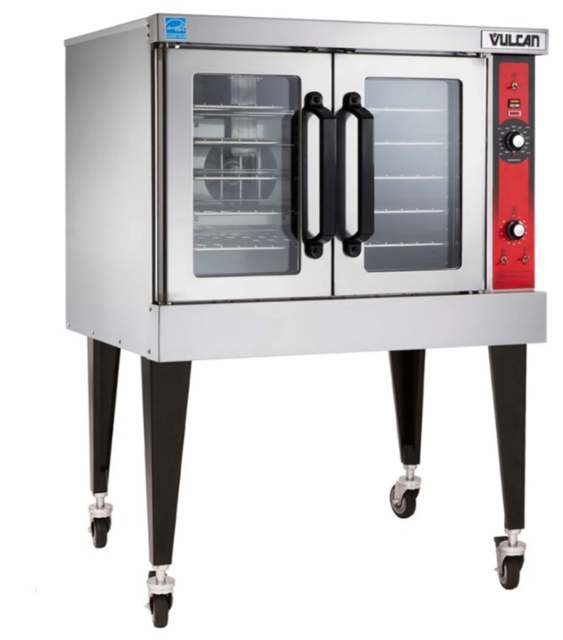

Vulcan Cooking Equipment VC4EC

Inspect door strike for proper shape

Adjust door strike plate if necessary

Open and close the doors several times

Replace roller latch if malfunctioning

WARNING: Disconnect the electrical power to the machine and follow lockout/tagout procedures. Ensure all circuits are disconnected.

Remove the top front cover as outlined under COVERS AND PANELS in REMOVAL AND REPLACEMENT OF PARTS.

Independent doors - Ensure the switch actuator is operated by the switch lever when the right door is between 1" and 1 1/2" from being closed.

Simultaneous doors - Ensure the switch actuator is operated by the switch lever when the right door is 1/2" from being closed.

If adjustment is necessary, bend the switch actuator to obtain the proper setting.

Apply power to the oven and check for proper operation.

Remove screws from roller latch assembly

Reverse procedure to install roller latch assembly

When the oven doors are in proper adjustment, as the doors come together, the right door will lead the left door in closing by about 1/4 inch. The doors will feel like they are self closing the last 1/2 inch of travel.

Remove the lower sill cover as outlined under COVERS AND PANELS in REMOVAL AND REPLACEMENT OF PARTS.

Close doors and check door chain for factory setting.

Turnbuckles should be 5 to 5 1/2 inches apart.

Short eye bolt should be connected to the end of the chain that goes to the front of the sprocket.

2 links of the chain should not be engaged at the rear of the sprocket.

Chain must be tight enough that the doors move simultaneously when opened or closed.

When the doors are opened, the turnbuckles will move away from each other.

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Remove racks and right-side hand rack guide.

Grasp lamp using a clean cloth and remove from lamp assembly.

Reverse procedure to install new bulb.

Verify gasket is flat on lamp cover and not damaged.

Dispose of the old bulb properly.
