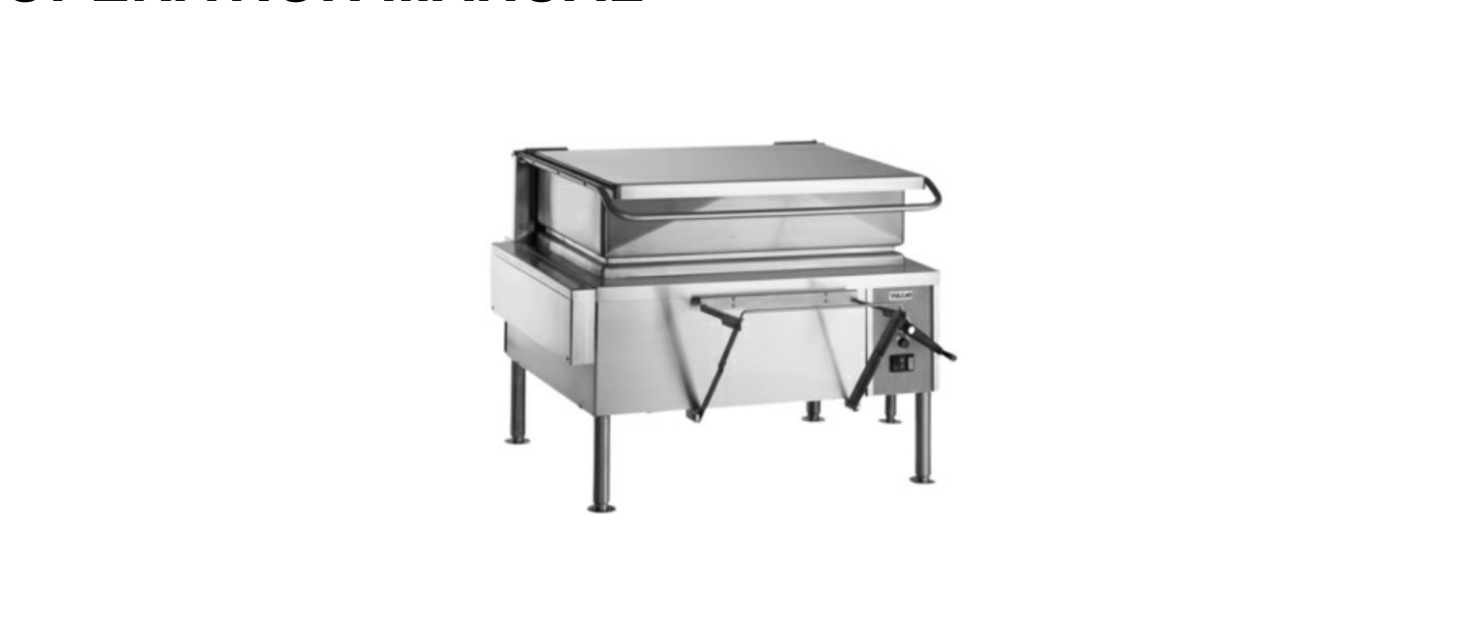

Vulcan Braising Pan VG30

Ensure the tilting braising pan and its parts are cool before starting.

Disconnect the electrical power to the machine.

Follow lockout / tagout procedures.

Locate the lid lift mechanism and tension spring behind the backsplash on both the left and right rear corners of the braising pan.

Remove the cover by prying and lifting up.

Apply 8 to 10 drops of lubricating machine oil to the lid lift mechanisms.

Ensure the braising pan and its parts are cool before starting

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Have a Vulcan authorized service person clean the tilting braising pan

Have a Vulcan authorized service person adjust the tilting braising pan for maximum performance

Ensure the following safety measures are in place before starting maintenance

Verify the tilting braising pan and its parts are cool

Check the flue for any grease buildup or obstructions

Clean the flue to remove any grease buildup or obstructions

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Clean the braising pan surface regularly

Ensure the pan surface is free from carbonized grease

Clean the pan surface with a brush or flexible spatula after each use

Remove the strainer at the pouring lip of the braising pan

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Thoroughly clean the back of the pan

Thoroughly clean the sides of the pan

Thoroughly clean the front of the pan

Clean the inside surface of the lid
