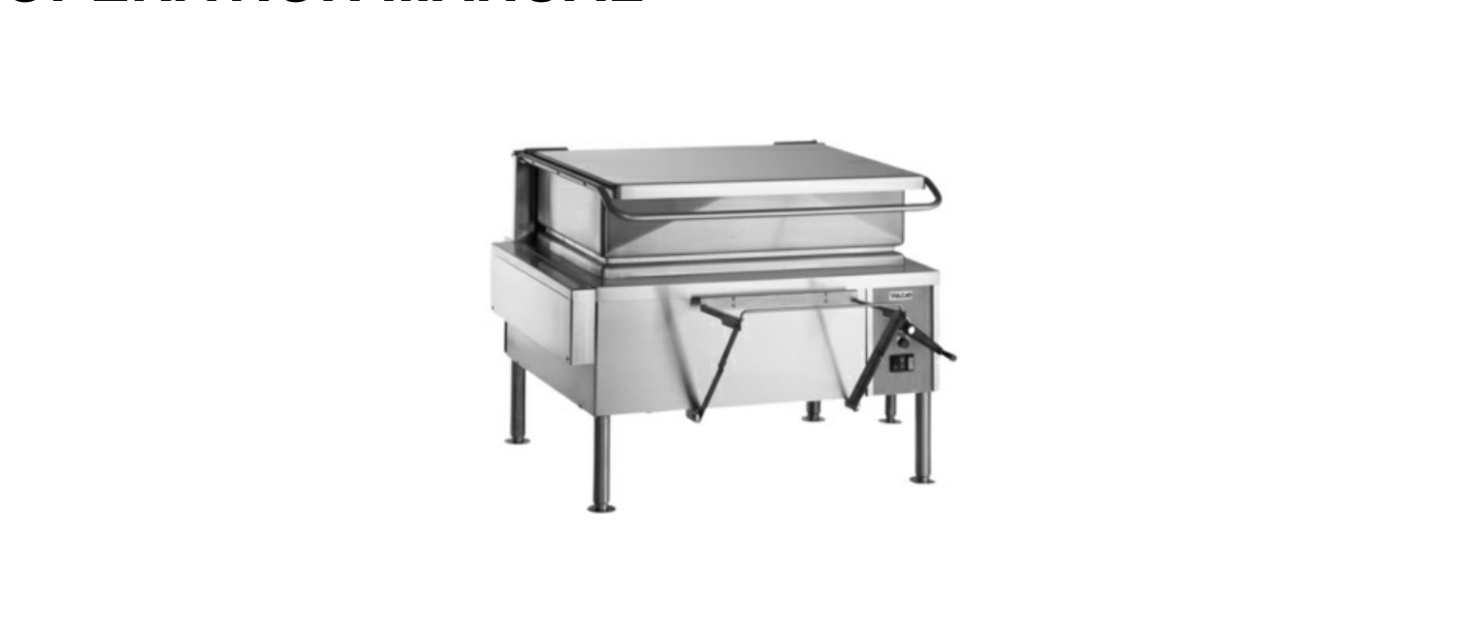

Vulcan Braising Pan VE40
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Vulcan Braising Pan VE40
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Vulcan Braising Pan VE40
Create an account to install this asset package.
Maintenance Plans for Vulcan Braising Pan Model VE40
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Flue Maintenance
Safety Precautions
Ensure the tilting braising pan and its parts are cool before starting maintenance
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Flue Inspection and Cleaning
Check the flue for any grease buildup or obstructions
Clean the flue of any grease buildup or obstructions
6 Monthly Braising Pan Cleaning And Adjustment
Safety Precautions
Ensure the tilting braising pan and its parts are cool before starting
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Adjustments
Schedule a Vulcan authorized service person for cleaning and adjustment
Verify the cleaning and adjustment were performed
1 Daily Braising Pan And Lid Cleaning
Safety Precautions
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Cleaning the Pan
Thoroughly clean the back of the pan
Thoroughly clean the sides of the pan
Thoroughly clean the front of the pan
Cleaning the Lid
Clean the inside surface of the lid
6 Monthly Lid Lift Mechanism Lubrication
Safety Precautions
Ensure the tilting braising pan and its parts are cool before starting
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Lid Mechanism Lubrication
Locate the lid lift mechanism and tension spring behind the backsplash
Remove the cover by prying and lifting up
Apply 8 to 10 drops of lubricating machine oil
Place oil between the lid arm and stationary block
Braising Pan Surface And Strainer Cleaning
Safety Precautions
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Cleaning the Braising Pan Surface
Clean the pan surface with a brush or flexible spatula
Check that the pan surface is free from carbonized grease
Strainer Cleaning
Remove the strainer at the pouring lip of the braising pan
Clean the strainer in a sink
