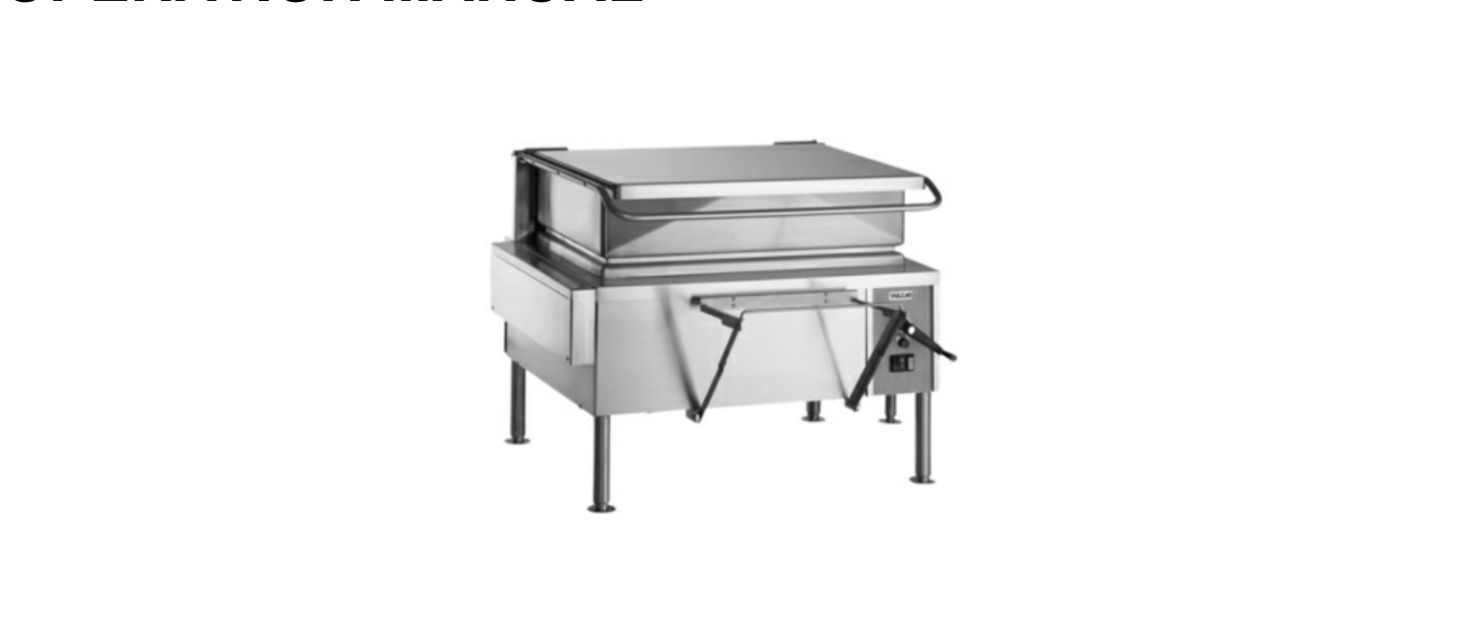

Vulcan Braising Pan VE30
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Vulcan Braising Pan VE30
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Vulcan Braising Pan VE30
Create an account to install this asset package.
Maintenance Plans for Vulcan Braising Pan Model VE30
Integrate maintenance plans directly into your work orders in MaintainX.
Braising Pan Surface And Strainer Cleaning
Safety Precautions
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Pan Surface Cleaning
Clean the pan surface with a brush or flexible spatula
Check for carbonized grease on the pan surface
Strainer Cleaning
Remove the strainer at the pouring lip of the braising pan
Clean the strainer in a sink
1 Daily Braising Pan And Lid Cleaning
Safety Precautions
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Clean the pan
Thoroughly clean the back of the pan
Thoroughly clean the sides of the pan
Thoroughly clean the front of the pan
Clean the lid
Clean the inside surface of the lid
6 Monthly Lid Lift Mechanism Lubrication
Safety Precautions
Ensure the tilting braising pan and its parts are cool before starting.
Disconnect the electrical power to the machine.
Follow lockout / tagout procedures.
Access Lid Lift Mechanism
Locate the lid lift mechanism and tension spring behind the backsplash on both the left and right rear corners of the braising pan.
Remove the cover by prying and lifting up.
Lubrication Process
Apply 8 to 10 drops of lubricating machine oil to the lid lift mechanisms.
6 Monthly Braising Pan Cleaning And Adjustment
Safety Precautions
Ensure the braising pan and its parts are cool before starting
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Adjustment and Cleaning
Contact a Vulcan authorized service person for cleaning and adjustment
Ensure the tilting braising pan is cleaned and adjusted for maximum performance
1 Yearly Flue Maintenance
Safety Precautions
Ensure the tilting braising pan and its parts are cool before starting maintenance
Disconnect the electrical power to the machine
Follow lockout / tagout procedures
Flue Inspection and Cleaning
Check the flue for any grease buildup or obstructions
Clean the flue of any grease buildup or obstructions
