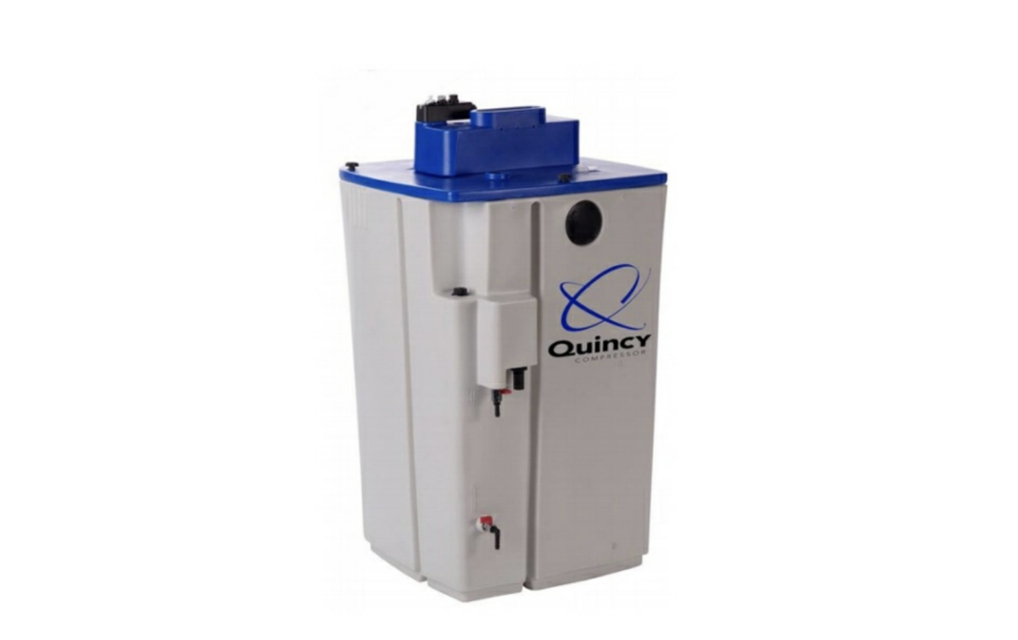

Quincy Compressor QCS 100

Observe the legal regulations in your country pertaining to the use and handling of filters, particularly with regard to keeping a spare filter set.

Use only manufacturer approved filter sets to ensure operational reliability and warranty compliance.

Open the QCS cover, and remove the filter mat and the inlet.

Slowly remove the used pre-filter and the main filter from the container and let them drain.

Put the drained filter set into the PE packaging and dispose of in accordance with local regulations.

Insert a new filter set into the filter receptacle.

Ensure correct disposal of the liquid

Replace the filter and filter mat

Switch off compressor if necessary

Inspect hoses and hose connections

Check hose connections for leaks

Ensure all hose clamps are secure

Switch off compressor if necessary

Fill test tube at the sample valve

Compare the test tube sample cloudiness with the reference jar

Is the sample clearer than the reference jar?

If the sample is cloudier than the reference jar, change the filter
