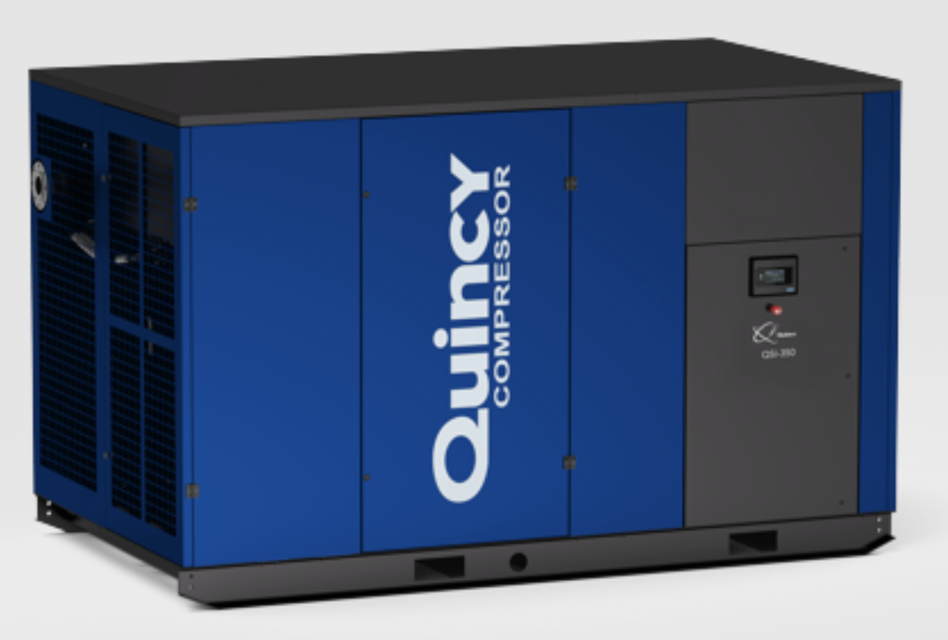

Quincy Compressor QSI 1500

Air Intake Filter Element Servicing

Service the air intake filter element under the following conditions

Clean the filter element by washing in a warm water solution of household detergent

Record the number of times the filter element has been washed

Ensure a spare filter element is available to minimize machine downtime

Change the safety element once a year

Discard the used safety element as it is not reusable

Check conditions for air/oil separator change

Remove the old air/oil separator

Inspect the removed separator for faults

Install the new air/oil separator

Check for leaks after installation

Record the date and operational hours of the change

Dispose of the old separator according to environmental regulations

Record the current oil level from the float type liquid oil level gauge

Is the oil level within the acceptable range?

Drain the existing oil from the compressor reservoir

Dispose of the used oil according to environmental regulations

Replace the oil filter elements under the following conditions

Record the current operating hours of the compressor

Has the compressor operated for 2000 hours since the last oil change?

Drain the old oil from the compressor

Refill the compressor with new oil

Is the oil filter warning light on?

Has it been 6 months since the last oil filter change?

Has the compressor operated for 2000 hours since the last oil filter change?

Ensure the carbon washer is not dropped or scratched

Oil the outer surface of the seal seat 'O' ring

Push the seal seat with 'O' ring into the seal adapter

Spring Holder and Spring Installation

Place the spring holder on the shaft and push it down on the input shaft bearing

Bellows and Carbon Washer Installation
