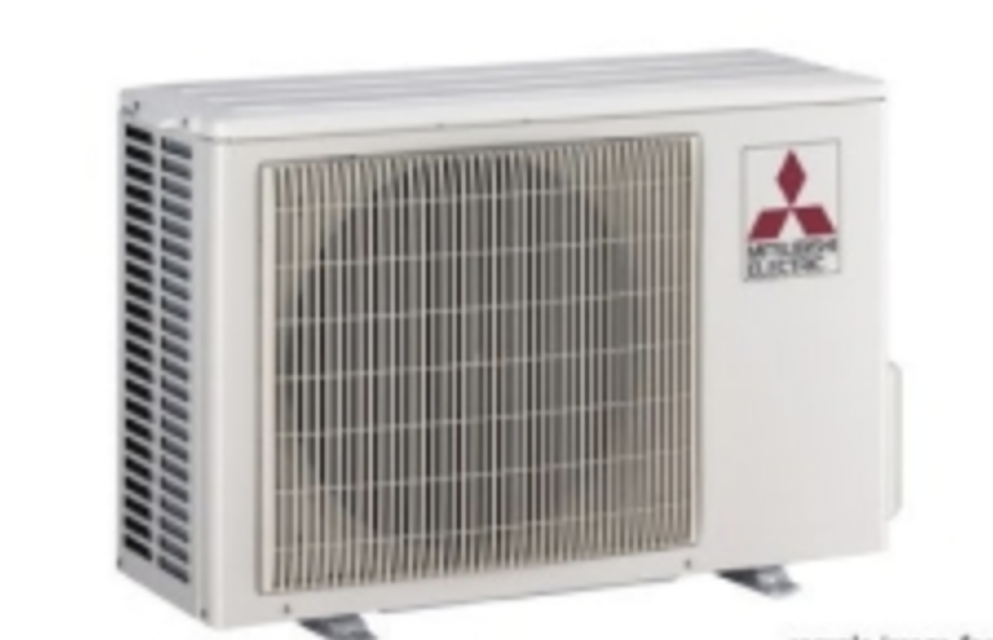

Mitsubishi HVAC Unit MU-A12WA
Create an account to install this asset package.
Maintenance Plans for Mitsubishi HVAC Unit Model MU-A12WA
Integrate maintenance plans directly into your work orders in MaintainX.
Electrical Part Removal
Panel and Cabinet Removal
Remove the service panel
Remove the cabinet
Remove the following parts
Propeller / Outdoor Fan Motor Removal
Remove the cabinet
Remove the propeller nut and remove the propeller
Note on propeller removal and attachment
Disconnect the connector
Remove the lead clamps and outdoor fan motor lead wires
Remove the screws fixing the outdoor fan motor
Remove the outdoor fan motor
Compressor Removal
Initial Component Removal
Remove the cabinet. (Refer to 1)
Remove the relay panel.
Remove the soundproof felt.
Remove the terminal cover.
Electrical Disconnection
Pull out the lead wires from the glass terminal of the compressor.
Gas Recovery and Pipe Disconnection
Recover gas from the refrigerant circuit.
Cabinet Removal
Cabinet Disassembly
Remove the screws of the cabinet
Hold the bottom of the cabinet on both sides
Remove the cabinet
Post Removal Check
Is the cabinet removed without any damage?
Describe any issues encountered during removal
Parts for Mitsubishi HVAC Unit MU-A12WA
Access the parts list for your equipment in MaintainX.
Back Panel
E02 A50 233
Cabinet
E02 817 232
Grille
E02 817 521
Propeller
E02 141 501
Motor Support
E02 139 515
Back Panel
E02 A50 233
Cabinet
E02 817 232
Grille
E02 817 521
Propeller
E02 141 501
Motor Support
E02 139 515
Back Panel
E02 A50 233
Cabinet
E02 817 232
Grille
E02 817 521
Propeller
E02 141 501
Motor Support
E02 139 515
