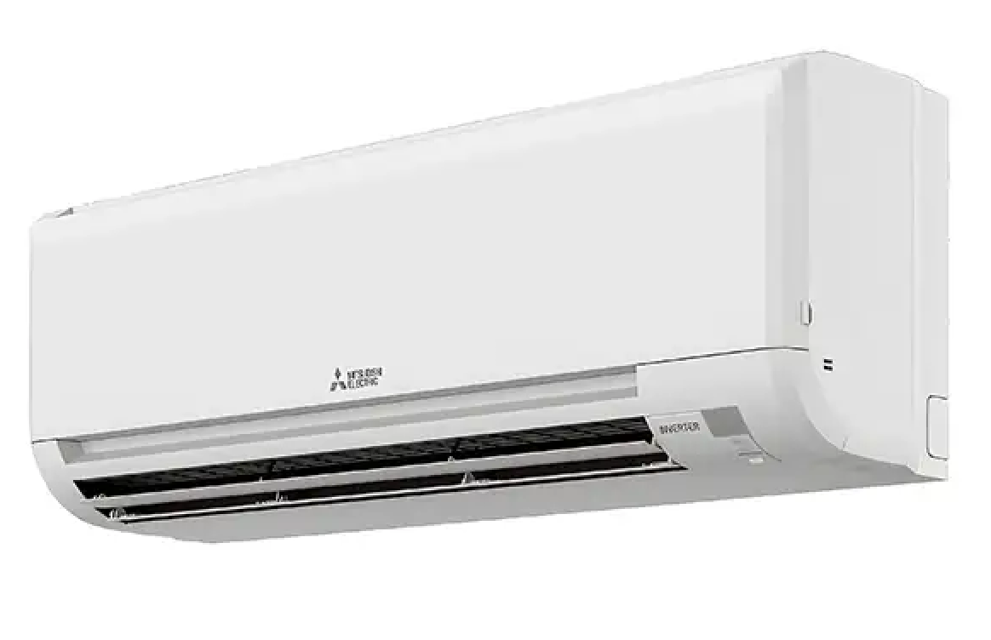

Mitsubishi HVAC Unit MSZ-GS30NA

Lift the front panel until it is level

Pull the hinges forward to remove the front panel

Remove the screw caps of the panel

Hold the lower part of both ends on the panel and pull it slightly toward you

Remove the panel by pushing it upward

Remove the panel and corner box

Electrical Cover and V.A. Clamp Removal

Remove the screw of the electrical cover

Remove the screw of the V.A. clamp

Remove the indoor/outdoor connecting wire

Remove the nozzle assembly (Refer to section 3)

Horizontal Vane Motor Unit Removal

Remove the screws of the horizontal vane motor unit

Pull out the horizontal vane motor unit

Disconnect the connector from the horizontal vane motor

Remove the screws of the horizontal vane motor

Remove the electrical side cover

Disconnect the following connector on the electronic P.C. board

Remove the panel and the corner box

Water Cover and Fan Preparation

Loosen the screw of the line flow fan
