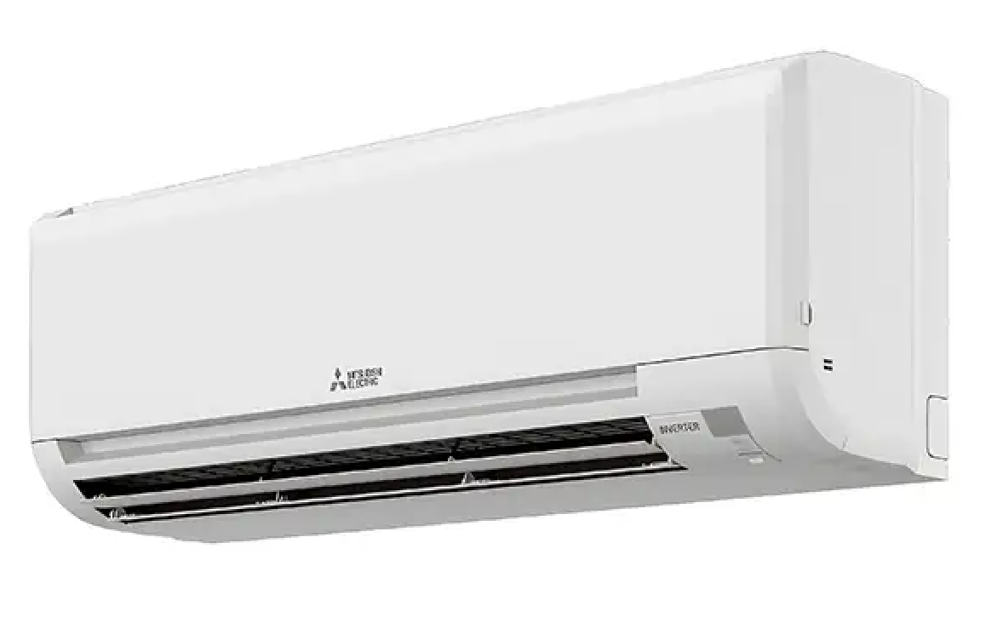

Mitsubishi HVAC Unit MSY-GS30NA2

Remove the nozzle assembly (Refer to section 3)

Vertical Vane Motor Unit Disassembly

Remove the crank of the vertical vane motor unit from the vertical vane

Remove the screw of the vertical vane motor unit, and pull the vertical vane motor unit

Remove the screws of the vertical vane motor unit cover

Remove the crank of the vertical vane motor unit from the shaft of the vertical vane motor

Remove the vertical vane motor from the vertical vane motor unit

Remove the panel and corner box.

Electrical Cover and V.A. Clamp Removal

Remove the screw of the electrical cover and remove the electrical cover.

Remove the screw of the V.A. clamp.

Remove the V.A. clamp and the indoor/outdoor connecting wire.

Disconnect TAB of the ground wire connected to the indoor heat exchanger.

Hold both sides of the front panel and lift until level, then pull hinges forward to remove the front panel.

Remove the screw caps of the panel.

Remove the screws of the panel.

Hold the lower part of both ends on the panel and pull slightly toward you.

Remove the panel by pushing it upward.

Remove the electrical side cover

Disconnect the following connector on the electronic P.C. board

Remove the panel and the corner box

Water Cover and Fan Preparation

Loosen the screw of the line flow fan
