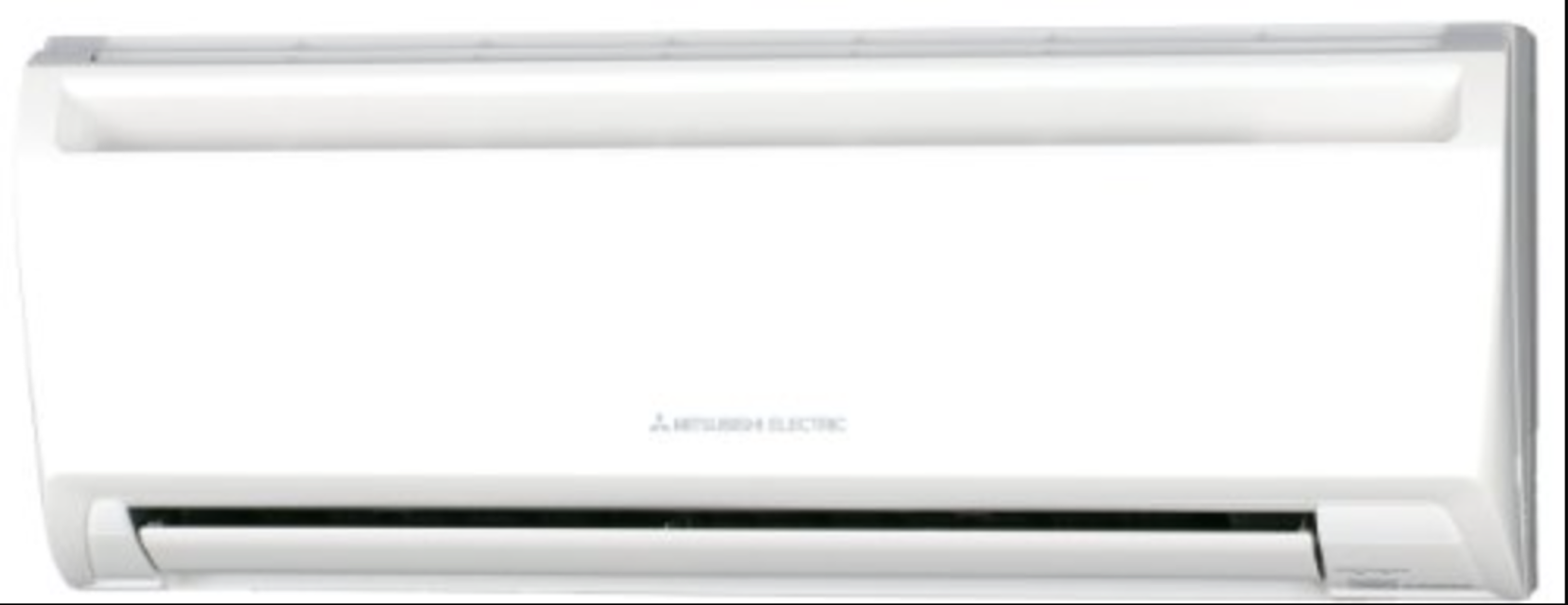

Mitsubishi HVAC Unit MS-A09WA - 1

Ensure the following parts are removed

Remove the screw of Conduit cover

Remove the indoor/outdoor connecting wire

Remove the switch holder and the electrical box

Pull out the drain hose from the nozzle assembly

Remove the screws fixing the motor bed

Horizontal Vane and Panel Removal

Remove the horizontal vane and the panel

Horizontal Vane Motor Unit Removal

Remove the screws of the horizontal vane motor unit

Pull out the horizontal vane motor unit

Disconnect the connector from the horizontal vane motor unit

Turn off the air conditioning unit

Remove the air cleaning filter from the unit

Allow the filter to dry completely before reattaching

Soak the filter in lukewarm water

Remove the screw caps of the panel

Hold the lower part of both ends on the panel and pull it slightly toward you

Remove the panel by pushing it upward
