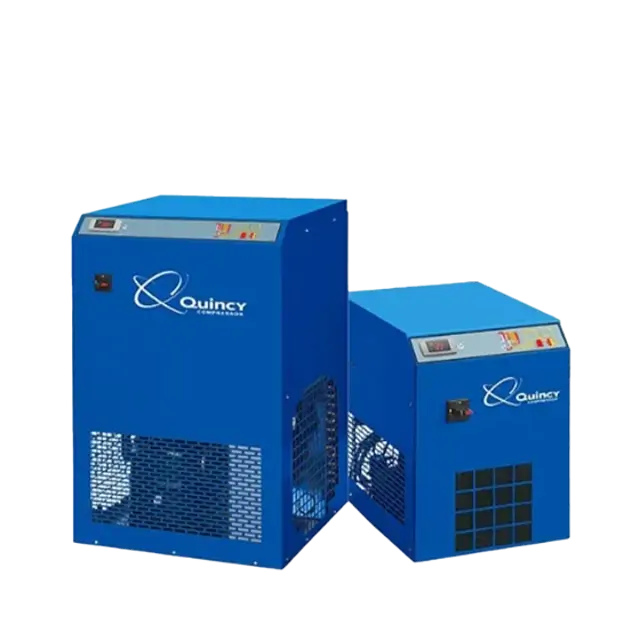

Quincy Compressor QPNC636 (E14)

Disconnect from the power mains

Disconnect from the compressed air distribution network

Condenser Finned Surface Cleaning

Select the cleaning method used for the finned surface

Was the finned surface cleaned successfully?

Release the pressure in the dryer by pressing the condensate drain 'TEST' pushbutton located on the steam trap Ref. 2 Fig. 10

Turn the switch to position STOP Ref. 3 Fig. 10

Turn on the supply automatic differential switch Ref. 4 Fig. 10

Turn the switch to STOP position (Ref. 3 Fig. 10)

Turn on the supply automatic differential switch (Ref. 4 Fig. 10)

Clean the condenser fins (Ref. 1) with compressed air

Close the panels (Ref. 5 Fig. 10)
