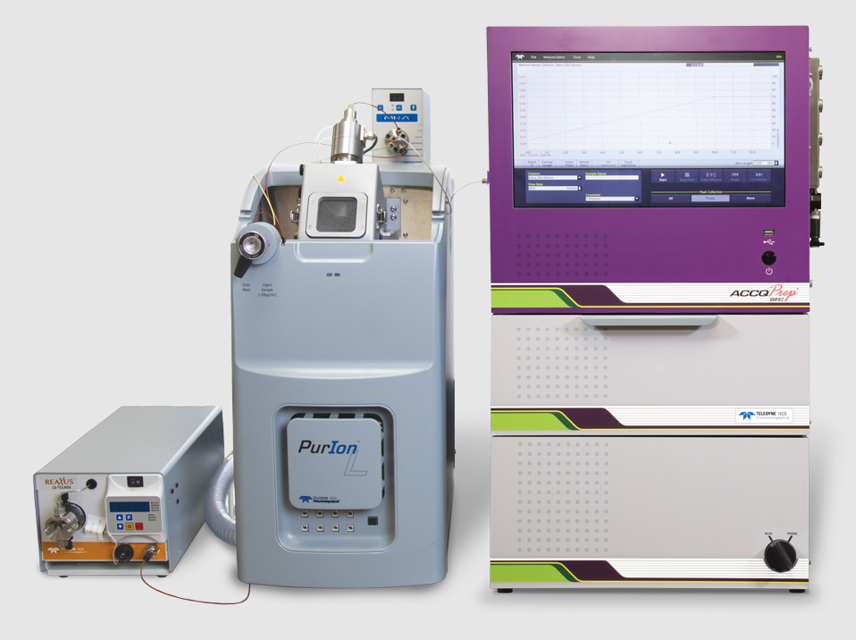

Teledyne CETAC Technologies Oven ACCQPrep SFC

Check for Accessory Kit (PN 605269011)

Select TOOLS > MANUAL CONTROL > VENT SYSTEM PRESSURE

Wait for at least 15 minutes for the instrument to depressurize

Monitor the System and BPR pressure reading in the System Status Bar

Turn off the power to the system

Loosen the rotor cap using a 5/8" open-faced wrench

Finish removing the rotor cap by hand

Perform cleaning as per Section 5.1.1

Perform quick flow cell cleaning when recommended by a system alert message as per Section 5.4

Allow the separation run to finish with a high percentage of co-solvent to flush residual compounds from the column, internal tubing, and flow cell

Allow the sample probe wash to run to completion to wash residual compounds from the sample line

Use a cleaning cloth dampened with a mixture of distilled water and mild detergent to clean the exterior surfaces.

Use isopropyl alcohol for tougher stains.

Avoid rubbing vigorously on printed areas such as labels.

Do not use aggressive solvents like acetone on printed areas.

Do not immerse the instrument in a water bath.

Avoid subjecting the instrument to a liquid spray.

Inspect the following tubing for damage, kinks, or deterioration

Check fittings for signs of leaks

Check pumps at the front of the pump module for leaks

Check pumps at the front of the pump module for frosting

Check pumps at the front of the pump module for condensation

Inspect back-side tubing for leaks

Measure the chiller liquid level

Is the chiller liquid level adequate?

Check the chiller temperature on the LCD display
