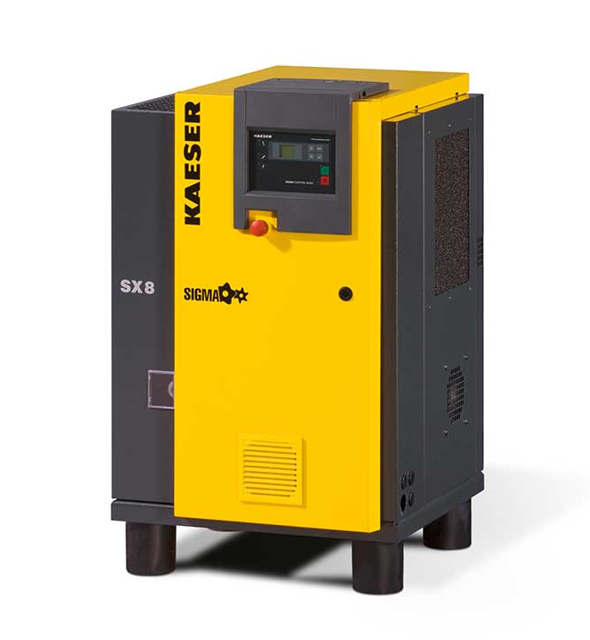

Kaeser Compressor Aircenter SX 8

Condensate Drain Tap Maintenance

Undo the knurled screw on the condensate drain tap and drain the condensate into a suitable canister.

Close the condensate drain tap.

Dispose of the condensate according to valid environmental regulations.

Ensure the power supply disconnecting device is switched off

Lock the disconnecting device in the off position

Ensure the machine has cooled down

Remove the filter mat from the retaining frame

Dry brush the oil and air coolers

Use a vacuum cleaner to remove the dirt

Ensure the power supply disconnecting device is switched off

Lock the disconnect device in the off position

Verify that no voltage is present

Confirm the machine has cooled down

Release the spring clips and remove the element

Clean all parts and sealing surfaces

Check that all sealing surfaces match each other

Insert the new element in the housing

Authorized Personnel Confirmation

Check valves for proper operation

Record any issues found during valve check

Service tasks punctuality and conditions consideration

Signature of KAESER Service representative
