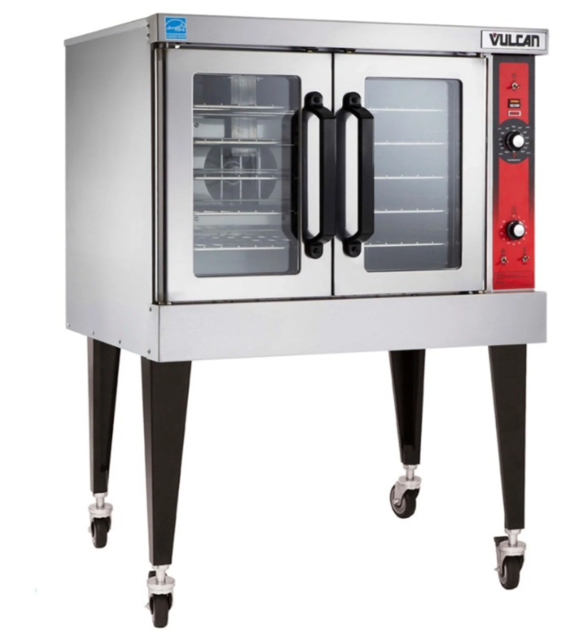

Vulcan Cooking Equipment VC4ED

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Remove racks and right-side hand rack guide.

Grasp lamp using a clean cloth and remove from lamp assembly.

Reverse procedure to install new bulb.

Verify gasket is flat on lamp cover and not damaged.

WARNING: Disconnect the electrical power to the machine and follow lockout/tagout procedures. Ensure all circuits are disconnected.

Remove the right side panel as outlined under COVERS AND PANELS.

If right side panel is not accessible, this component can be serviced by removing the control panel as outlined under COVERS AND PANELS.

Disconnect the wire leads to the component being replaced.

Reverse the procedure to install the replacement component and check oven for proper operation.

Remove the two screws near front of oven

Remove the remaining seven screws securing the right side panel

Pull the right side panel out at the bottom then down to remove

Reverse the procedure to install

Disconnect the electrical power to the machine and follow lockout/tagout procedures

Remove the oven racks and rack supports

Remove the "top" door seal from the oven

Determine the side of the heating element to replace

Measure the current draw of the heating elements

Remove the perforated panel from the side of the element being replaced

Remove the probe guard or mounting clips if removing the right side panel

Run the probe wire through the panel opening before lifting panel out

Remove the hold down clamps and mounting bracket screws from the element

Use the key sequence to access the calibration mode: Up arrow; Down arrow; Rack 1; Down arrow; Temperature; Rack 1.

Calibration Mode Initial Checks

Verify that the following outputs are turned OFF

Is the default 'no' selected under the 'CALY' parameter?

Enter the number for testing the logic output.

Verify the following control outputs based on the selected number
