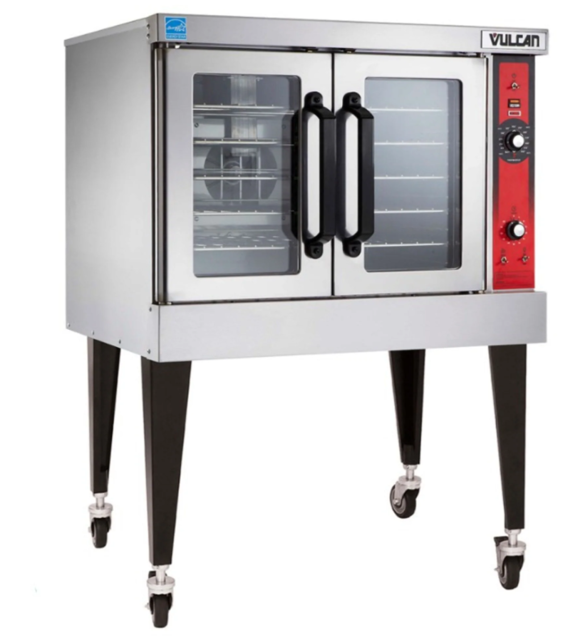

Vulcan Cooking Equipment VC4ES

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures. Be sure all circuits are disconnected.

Remove the screws at the top and bottom of door.

If replacing window on the left door, remove the handle from the front of the door then remove door seal from the inside edge of the door.

Lift out the inner door panel and window assembly.

If replacing window on the right door, remove the screws along the inside edge (if applicable) of the door then remove the inner door panel and window assembly.

Remove the screws securing the window "tabs" to the door bracket and lift the window assembly out from the door frame.

Reverse procedure to install the replacement window.

Check that all tools are accounted for and the work area is clean.

Remove the screws on the right side securing the control panel

Pull the control panel away from the oven

Disconnect the temperature probe leads from the solid state temperature control

Unplug the wire harness connector to the control panel components

Reattach the wire harness connector to the control panel components

Reconnect the temperature probe leads to the solid state temperature control

Secure the control panel to the oven with screws

WARNING: Disconnect the electrical power to the machine and follow lockout/tagout procedures.

Ensure all circuits are disconnected

Remove the high limit thermostat cover/mounting plate from inside the oven cavity at the top

Disconnect lead wires from high limit thermostat

Remove high limit thermostat from cover/mounting plate

Remove the old RTV sealer from the cover and mating surfaces inside the oven cavity

Apply new high temperature RTV sealer before installing

Reverse procedure to install the new high limit thermostat

WARNING: Disconnect the electrical power to the machine and follow lockout / tagout procedures.

Ensure all circuits are disconnected

Remove the right side panel as outlined under COVERS AND PANELS

If right side panel is not accessible, remove the control panel as outlined under COVER AND PANELS

Disconnect the probe leads from the solid state temperature control

Remove the racks and right rack support

Remove the probe guard or mounting clips

Remove probe by pushing it through the oven wall and into the control panel area

Reverse the procedure to install the replacement probe

Disconnect the electrical power to the machine

Follow lockout / tagout procedures

Remove door switch lever if servicing right side door

While supporting door, remove hex bolts holding upper bearing retainer and upper shaft bracket

Lift door off lower shaft bracket
