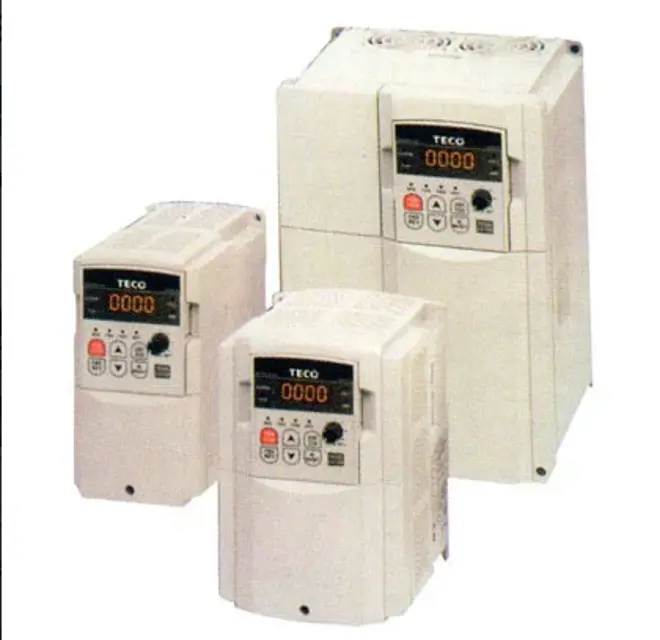

TECO Inverter JNTHBGBA0015BE-UF
Create an account to install this asset package.
Maintenance Plans for TECO Inverter Model JNTHBGBA0015BE-UF
Integrate maintenance plans directly into your work orders in MaintainX.
1 Yearly Inverter Maintenance
Installation and Grounding of the Inverter
Measure the ground bonding resistance with a multi-tester
Is the ground bonding resistance correct? (200V series below 100Ω, 400V series below 10Ω)
Correct grounding if resistance is not within criteria
External Terminals and Internal Mounting Screws
Check for loose parts, terminal base damage, and rust stains
Secure terminals and ensure no rust is present
Secure or return for repair if any issues are found
Internal Wiring of the Inverter
1 Daily Inverter Maintenance
Ambient Conditions
Measure the temperature around the drive
Measure the humidity around the drive
Are there flammable or corrosive materials in the vicinity?
Installation and Grounding of the Inverter
Is there any excessive vibration from the machine?
Input Power Voltage
Measure the input power voltage
Heat Sink
Inverter Maintenance
Pre-Inspection Safety
Turn off the power
Wait for the charge indicator (LED101) to go out
Clean the accumulation of muck inside the inverter
Screw Inspection and Tightening
Check for loose screws
Tighten all loose screws
Insulation Tests
Disconnect all leads connecting the T-VERTER with the external circuit
Parts for TECO Inverter JNTHBGBA0015BE-UF
Access the parts list for your equipment in MaintainX.
Remote Cable Kit, Cable Length 0.5 Meter
JNSW-30P5
Remote Cable Kit, Cable Length 1.0 Meter
JNSW-3001
Remote Cable Kit, Cable Length 2.0 Meter
JNSW-3002
Remote Cable Kit, Cable Length 3.0 Meter
JNSW-3003
Remote Cable Kit, Cable Length 5.0 Meter
JNSW-3005
Remote Cable Kit, Cable Length 0.5 Meter
JNSW-30P5
Remote Cable Kit, Cable Length 1.0 Meter
JNSW-3001
Remote Cable Kit, Cable Length 2.0 Meter
JNSW-3002
Remote Cable Kit, Cable Length 3.0 Meter
JNSW-3003
Remote Cable Kit, Cable Length 5.0 Meter
JNSW-3005
Remote Cable Kit, Cable Length 0.5 Meter
JNSW-30P5
Remote Cable Kit, Cable Length 1.0 Meter
JNSW-3001
Remote Cable Kit, Cable Length 2.0 Meter
JNSW-3002
Remote Cable Kit, Cable Length 3.0 Meter
JNSW-3003
Remote Cable Kit, Cable Length 5.0 Meter
JNSW-3005
Unlock efficiency
with MaintainX CoPilot
MaintainX CoPilot is your expert colleague, on call 24/7, helping your team find the answers they need to keep equipment running.
