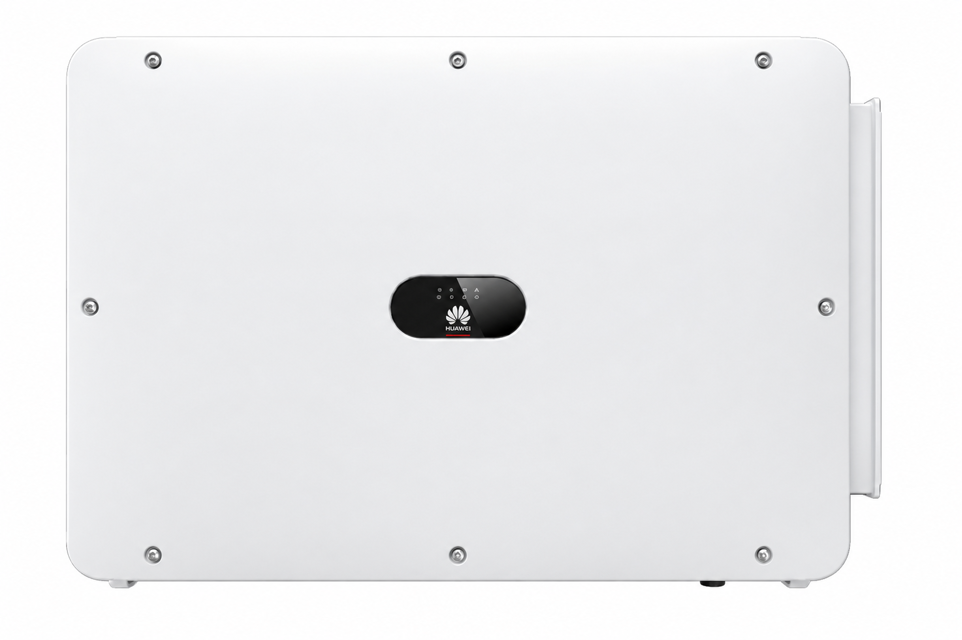

Huawei Solar Inverter SUN2000-100KTL-M1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Huawei Solar Inverter SUN2000-100KTL-M1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Huawei Solar Inverter SUN2000-100KTL-M1
Create an account to install this asset package.
Maintenance Plans for Huawei Solar Inverter Model SUN2000-100KTL-M1
Integrate maintenance plans directly into your work orders in MaintainX.
Solar Inverter Maintenance
Safety Precautions
Wear personal protective equipment
Use dedicated insulated tools to avoid electric shocks or short circuits
Power off the equipment before performing maintenance
Follow the instructions on the delayed discharge label and wait for the specified period
Ensure each DC SWITCH on the inverter is set to OFF before cleaning or checking connections
Are protective measures in place to prevent rain or snow from entering the maintenance compartment?
Vegetation Management
Inspect vegetation around the inverter
Solar Inverter Fan Replacement
Safety Precautions
Wear personal protective equipment (PPE) and use insulated tools
Power off the equipment and follow delayed discharge instructions
Ensure each DC SWITCH on the inverter is set to OFF
Are protective measures in place to prevent rain or snow from entering the maintenance compartment?
Fan Replacement Procedure
Remove screws from the fan tray and store them properly
Pull out the fan tray until it is flush with the inverter enclosure
Remove cable ties shared by the cables
Initial 6 Months Solar Inverter Check
Safety Precautions
Wear personal protective equipment and use dedicated insulated tools.
Power off the equipment before performing maintenance.
Follow the instructions on the delayed discharge label and wait for the specified time.
Environmental Precautions
Is it raining or snowing?
Were protective measures taken if maintenance compartment door was opened during rain or snow?
Electrical Connections Check
Check the status of cables
6 Monthly Solar Inverter Maintenance
Safety Precautions
Wear personal protective equipment and use dedicated insulated tools
Power off the equipment and follow delayed discharge instructions
Ensure each DC SWITCH on the inverter is set to OFF before cleaning or checking
Take protective measures if opening the maintenance compartment door on rainy or snowy days
Electrical Connections
Check for disconnected or loose cables
Inspect cables for damage, especially where they contact metal surfaces
Ensure sealing caps of idle DC input terminals are in place
