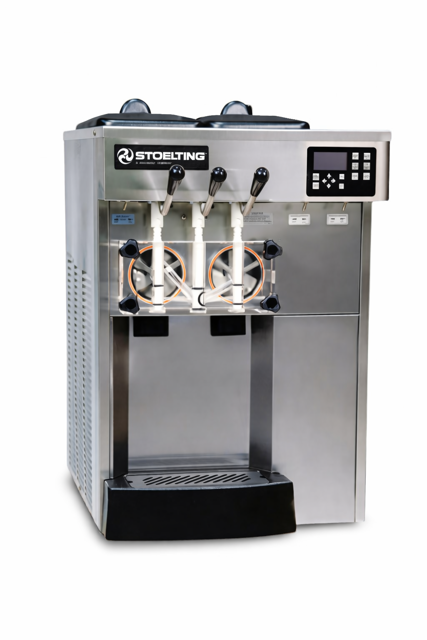

Stoelting Foodservice Equipment Ice Cream Machine E131X-314I2

Ensure the machine is disconnected from electrical supply

Verify that the power is disconnected

Service Technician Verification

Is the service technician qualified?

Check the condenser filter for dirt

Clean the condenser filter if necessary

Ensure sanitizer is in the freezing cylinders

Press the On/Off Left or On/Off Right button to display the Motor Calibration screen

Select both sides for calibration

Brush the hopper sides and cover with a clean sanitized brush

Record the calibration information in the startup form

Press the left arrow button after recording the information

Install the rear seal o-ring onto the auger.

Lubricate the outside of the o-ring with a generous amount of Total Blend lubricant.

Lubricate the inside metal surface of the rear seal.

Install the rear seal onto the auger shaft.

Lubricate the hex drive end of the auger with a small amount of Total Blend lubricant.

Is Total Blend sanitary lubricant or equivalent used for lubrication?

Is the lubricant certified for use on food processing equipment?

Ensure all necessary parts are available

Screw the springs onto the studs in the plastic flights

Install the two plastic flights onto the rear of the auger and insert it part way into the freezing cylinder

Install the remaining plastic flights, push the auger into the freezing cylinder and rotate slowly until the auger engages the drive shaft

Apply a thin layer of sanitary lubricant to the inside and outside of the auger support bushing

Install the bushing onto the auger support and install the auger support into the front of the auger

Lubrication and Installation of Spigot Bodies

Install the o-rings onto the spigot bodies and apply a thin layer of sanitary lubricant

Install the spigot bodies through the bottom of the front door

Fit the front door o-rings into the grooves on the rear of the front door

Place the front door assembly on the mounting studs and push front door against the machine carefully

Ensure the pin of the front door does not touch the legs of the auger support

Secure the front door by placing the knobs on the studs and tightening until finger tight
