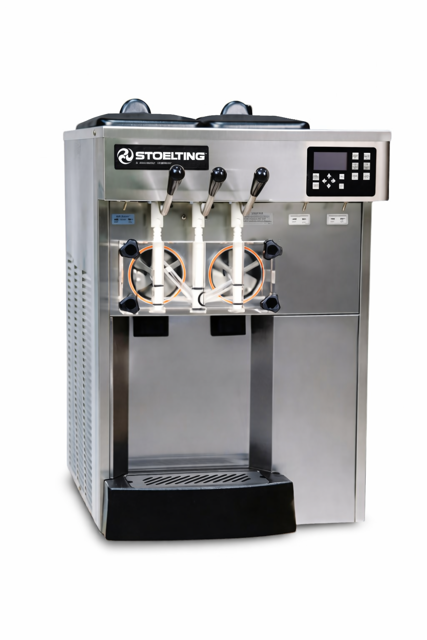

Stoelting Foodservice Equipment Ice Cream Machine E131X-302I2

Ensure all necessary parts are available

Screw the springs onto the studs in the plastic flights

Install the two plastic flights onto the rear of the auger and insert it part way into the freezing cylinder

Install the remaining plastic flights and push the auger into the freezing cylinder

Rotate the auger slowly until it engages the drive shaft

Apply a thin layer of sanitary lubricant to the inside and outside of the auger support bushing

Install the rear seal o-ring onto the auger.

Lubricate the outside of the o-ring with a generous amount of Total Blend lubricant.

Lubricate the inside metal surface of the rear seal.

Install the rear seal onto the auger shaft.

Lubricate the hex drive end of the auger with a small amount of Total Blend lubricant.

Ensure Total Blend sanitary lubricant or equivalent is used for lubrication.

Verify that no more than one packet of Total Blend is used per freezing cylinder.

Remove the front auger support and bushing

Remove the auger assembly from the machine

Pull the auger out of the freezing cylinder slowly

Plastic Flights and Springs Removal

Carefully remove each of the plastic flights with springs as the auger is being pulled out

Keep the rear of the auger tipped up once it is clear of the freezing cylinder to prevent the rear seal assembly from dropping

Lubricant Removal and Rear Seal Disassembly

Wipe the lubricant off of the hex end of the auger with a paper towel

Ensure the machine is disconnected from electrical supply before servicing.

Verify that the power is disconnected.

Check the condenser filter for dirt.

Clean the condenser filter if necessary.

Confirm service was completed by a qualified electrician/refrigeration specialist.

Describe any issues found during the inspection.

Press and hold the Main Freezer Power button for three seconds to turn the power off.

Remove the rosette caps or spigot extensions if installed.

Remove the knobs on the front door.

Remove the front door by pulling it off the studs.

Remove the spigot through the bottom of the front door.

Remove all o-rings from parts by first wiping off the lubricant using a clean towel.
