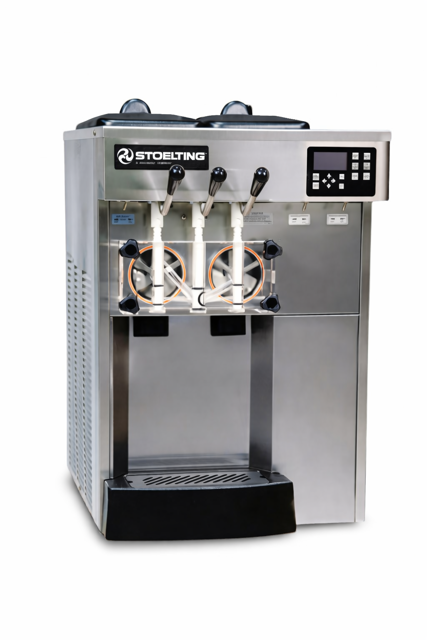

Stoelting Foodservice Equipment Ice Cream Machine E131-309I2YG2

Ensure all necessary parts are available

Is Total Blend sanitary lubricant or equivalent available?

Screw the springs onto the studs in the plastic flights completely

Install the two plastic flights onto the rear of the auger and insert it part way into the freezing cylinder

Install the remaining plastic flights and push the auger into the freezing cylinder

Rotate the auger slowly until it engages the drive shaft

Press and hold the Main Freezer Power button for three seconds to turn the power off.

Remove the rosette caps or spigot extensions if installed.

Remove the knobs on the front door.

Remove the front door by pulling it off the studs.

Remove the spigot through the bottom of the front door.

Remove all o-rings from parts by first wiping off the lubricant using a clean towel. Then squeeze the o-ring upward to form a loop. Roll the o-ring out of the groove.

Ensure the machine is disconnected from electrical supply before servicing.

Verify that the power is disconnected to prevent hazardous voltage exposure.

Check the condenser filter for dirt.

Clean the condenser filter if necessary.

Confirm that the service was completed by a qualified electrician/refrigeration specialist.

Record any issues or observations during the service.

Cleaning the Hoppers and Freezing Cylinders

Use detergent solution and large barrel brush to clean the hoppers and freezing cylinders

Thoroughly clean the rear seal surfaces on the inside of the freezing cylinders

Wrap the brush in a clean cloth

Thoroughly dry the hoppers and freezing cylinders

Remove the drip tray and drain tray

Disassemble all parts (Refer to Section 3.4 for the disassembly of machine parts)

Place all parts in 90° to 110°F (32°C to 43°C) mild detergent water and wash thoroughly

Use brushes to clean all holes in the front door, flights, mix pickup assembly, etc.

Rinse all parts with clean 90° to 110°F (32°C to 43°C) water

Place all parts in a sanitizing solution for at least 1 minute

Let all parts air dry completely before assembling in machine
