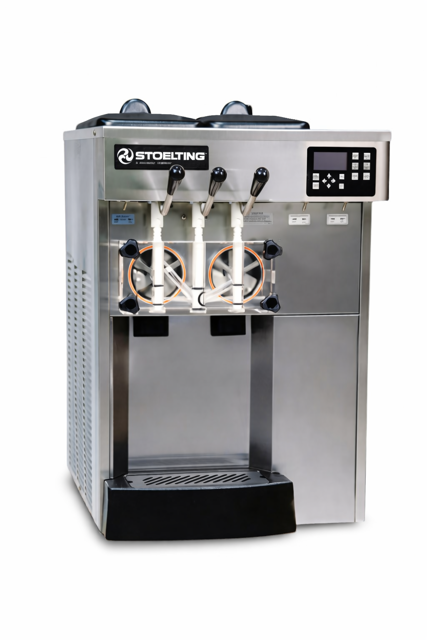

Stoelting Foodservice Equipment Ice Cream Machine E131X-102I2

Disconnect the machine from the electrical supply

Verify that the machine is disconnected from the power source

Is tightening of the drive belts necessary?

Ensure service is completed by a qualified electrician/refrigeration specialist

Press and hold the Main Freezer Power button for three seconds to turn the power off.

Remove the rosette caps or spigot extensions if installed.

Remove the knobs on the front door.

Remove the front door by pulling it off the studs.

Remove the spigot through the bottom of the front door.

Remove all o-rings from parts by first wiping off the lubricant using a clean towel. Then squeeze the o-ring upward to form a loop. Roll the o-ring out of the groove.

Check for any unusual noise or condition

Repair immediately if any unusual noise or condition is found

WARNING: Qualified personnel only

Install the rear seal o-ring onto the auger.

Lubricate the outside of the o-ring with a generous amount of Total Blend lubricant.

Lubricate the inside metal surface of the rear seal.

Install the rear seal onto the auger shaft.

Lubricate the hex drive end of the auger with a small amount of Total Blend lubricant.

Ensure Total Blend sanitary lubricant or equivalent is used for lubrication.

Verify that no more than one packet of Total Blend is used per freezing cylinder.

Cleaning the Hoppers and Freezing Cylinders

Use detergent solution and large barrel brush to clean the hoppers and freezing cylinders

Thoroughly clean the rear seal surfaces on the inside of the freezing cylinders

Wrap the brush in a clean cloth

Thoroughly dry the hoppers and freezing cylinders

Remove the drip tray and drain tray
