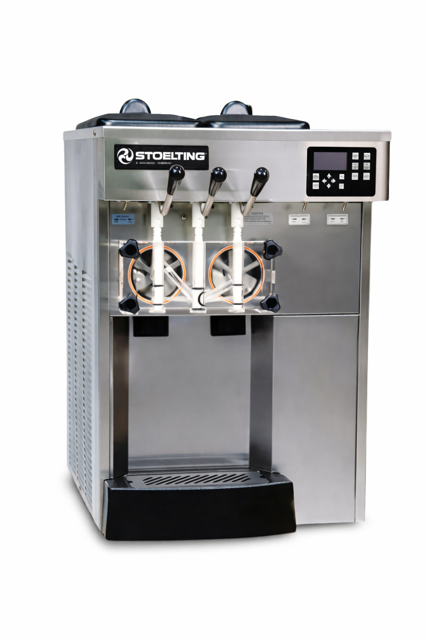

Stoelting Foodservice Equipment Ice Cream Machine E131-38I2-WF

Ensure sanitizer is in the freezing cylinders

Display the Motor Calibration screen

Move the cursor over the Left side and press the SEL button

Move the cursor over the Right side and press the SEL button

Brush the hopper sides and cover with a clean sanitized brush

Lubrication and Installation of Spigot Bodies

Install the o-rings onto the spigot bodies and apply a thin layer of sanitary lubricant

Install the spigot bodies through the bottom of the front door

Fit the front door o-rings into the grooves on the rear of the front door

Place the front door assembly on the mounting studs and push front door against the machine carefully

Ensure the pin of the front door does not touch the legs of the auger support

Secure the front door to the machine by placing the knobs on the studs and tightening until finger tight

Check if the proper o-ring seal can be observed through the transparent front door

Cleaning the Hoppers and Freezing Cylinders

Use detergent solution and large barrel brush to clean the hoppers and freezing cylinders

Thoroughly clean the rear seal surfaces on the inside of the freezing cylinders

Wrap the brush in a clean cloth

Thoroughly dry the hoppers and freezing cylinders

Remove the drip tray and drain tray

Remove the front auger support and bushing

Remove the auger assembly from the machine

Pull the auger out of the freezing cylinder slowly

Carefully remove each of the plastic flights with springs as the auger is being pulled out

Rear Seal and Lubricant Handling

Keep the rear of the auger tipped up once it is clear of the freezing cylinder to prevent the rear seal assembly from dropping

Wipe the lubricant off of the hex end of the auger with a paper towel

WARNING: Hazardous voltage. The machine must be disconnected from electrical supply before servicing.

Disconnect the machine from electrical supply before servicing

Check for worn or broken parts and replace parts as necessary

Describe any unusual noise or condition observed

Was immediate repair needed for any unusual noise or condition?

WARNING: Service must be completed by a qualified electrician/refrigeration specialist.

Record the name of the qualified electrician/refrigeration specialist who performed the service
