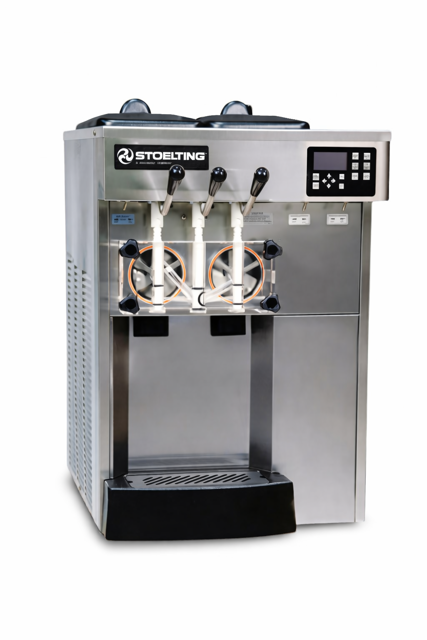

Stoelting Foodservice Equipment Ice Cream Machine E131-309I2

Ensure sanitizer is in the freezing cylinders

Motor Calibration Screen Display

Press the On/Off Left or On/Off Right button

Move the cursor over the Left side and press the SEL button

Move the cursor over the Right side and press the SEL button

Brush the hopper sides and cover with a clean sanitized brush

Record calibration information in the startup form

Install the rear seal o-ring onto the auger.

Lubricate the outside of the o-ring with a generous amount of Total Blend lubricant.

Lubricate the inside metal surface of the rear seal and install it onto the auger shaft.

Ensure the outside of the rear auger seal is not lubricated.

Lubricate the hex drive end of the auger with a small amount of Total Blend lubricant.

Repeat for each freezing cylinder

Notes on lubrication or assembly issues

Ensure all necessary parts are available

Install the o-rings onto the spigot bodies and apply a thin layer of sanitary lubricant to the o-rings.

Fit the front door o-rings into the grooves on the rear of the front door.

Place the front door assembly on the mounting studs and push front door against the machine carefully.

Secure the front door to the machine by placing the knobs on the studs and tightening until finger tight.

Disassemble all parts (Refer to Section 3.4 for the disassembly of machine parts)

Place all parts in 90° to 110°F (32°C to 43°C) mild detergent water and wash thoroughly

Use brushes to clean all holes in the front door, flights, mix pickup assembly, etc.

Rinse all parts with clean 90° to 110°F (32°C to 43°C) water

Place all parts in a sanitizing solution for at least 1 minute, then remove and let air dry completely before assembling in machine

Prepare 2 gallons of Stera-Sheen sanitizing solution following the manufacturer’s instructions

Ensure all necessary parts are available

Screw the springs onto the studs in the plastic flights completely

Install the two plastic flights onto the rear of the auger and insert it part way into the freezing cylinder

Install the remaining plastic flights, push the auger into the freezing cylinder and rotate slowly until the auger engages the drive shaft

Apply a thin layer of sanitary lubricant to the inside and outside of the auger support bushing

Install the bushing onto the auger support and install the auger support into the front of the auger
