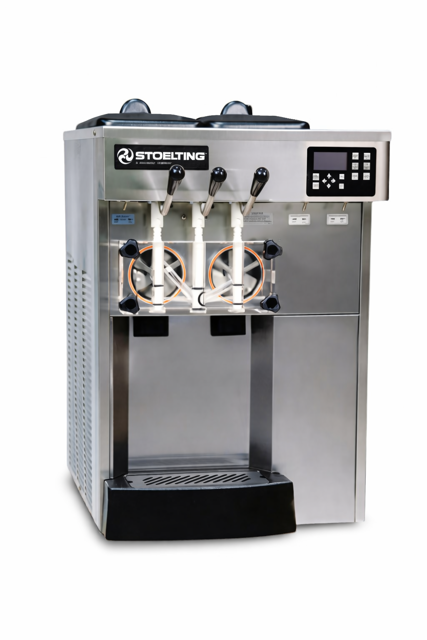

Stoelting Foodservice Equipment Ice Cream Machine E131-109I2

WARNING: Hazardous voltage. The machine must be disconnected from electrical supply before servicing.

Disconnect the machine from electrical supply before servicing

Check for worn or broken parts and replace parts as necessary

Describe any unusual noise or condition observed

Was immediate repair needed for any unusual noise or condition?

WARNING: Service must be completed by a qualified electrician/refrigeration specialist.

Record the name of the qualified electrician/refrigeration specialist who performed the service

Disassemble all parts. Refer to Section 3.4 for the disassembly of machine parts.

Place all parts in 90° to 110°F (32°C to 43°C) mild detergent water and wash thoroughly using the provided brushes.

Rinse all parts with clean 90° to 110°F (32°C to 43°C) water.

Place all parts in a sanitizing solution for at least 1 minute, then remove and let air dry completely before assembling in machine.

Prepare 2 gallons of Stera-Sheen sanitizing solution following the manufacturer’s instructions.

Place the carburetors into the hoppers without installing them.

Pour the sanitizing solution into the hoppers.

Lubrication and Installation of Spigot Bodies

Install the o-rings onto the spigot bodies and apply a thin layer of sanitary lubricant

Install the spigot bodies through the bottom of the front door

Fit the front door o-rings into the grooves on the rear of the front door

Place the front door assembly on the mounting studs and push front door against the machine carefully

Ensure the pin of the front door does not touch the legs of the auger support

Secure the front door to the machine by placing the knobs on the studs and tightening until finger tight

Check if the proper o-ring seal can be observed through the transparent front door

WARNING: Hazardous voltage. The machine must be disconnected from electrical supply before servicing.

Disconnect the machine from electrical supply

WARNING: Service must be completed by a qualified electrician/refrigeration specialist.

Check the condenser filter for dirt

Is cleaning of the condenser filter necessary?

Clean the condenser filter if necessary

Ensure all necessary parts are available

Is Total Blend sanitary lubricant or equivalent available?

Screw the springs onto the studs in the plastic flights completely

Install the two plastic flights onto the rear of the auger and insert it part way into the freezing cylinder

Install the remaining plastic flights and push the auger into the freezing cylinder

Rotate the auger slowly until it engages the drive shaft
