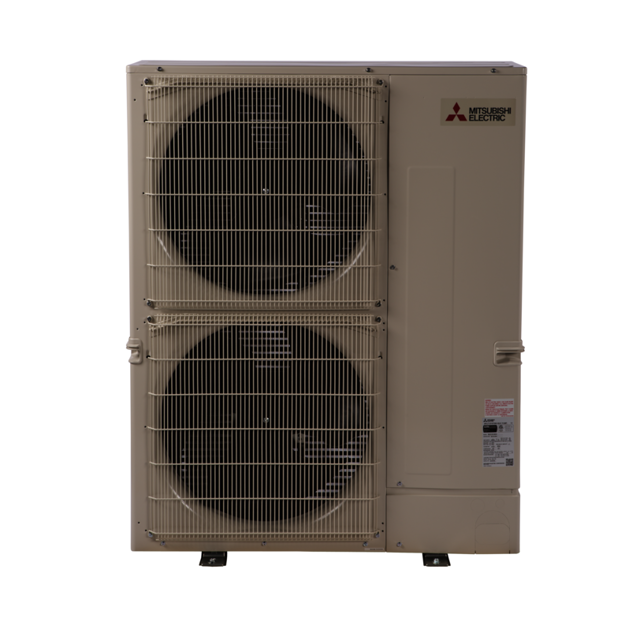

Mitsubishi Outdoor Unit MXZ-5C42NAHZ2-U1
Need answers fast?
Explore the manual using AI.
Turn manuals into instant answers
with your AI-powered assistantTurn manuals into instant answers
with your AI-powered assistant
Manual for Mitsubishi Outdoor Unit MXZ-5C42NAHZ2-U1
Complete asset maintenance, one click away
Get instant access to all the maintenance information you need. Empower technicians to perform preventive maintenance with asset packages, ready to use right out of the box.
Documents & Manuals
Find all the essential guides in one place.
Tensioning Guide- Belt-diagram
- C-120 pulleys
+ 13 more
Work Order Templates
Pre-built workflows to keep your asset running smoothly.
- Daily Electrical System Inspection
- Replace Roller and Pulley
- Install Engine B-120
+ 29 more
Procedures
Integrate maintenance plans directly into your work orders.
- Motion Industries
- Applied Industrial Technologies
- Electrical Brothers
+ 5 more
Parts
Access the parts list for your equipment in MaintainX.
- Drive Motor
- B2 Rollers
- Tensioning System
+ 40 more
Mitsubishi Outdoor Unit MXZ-5C42NAHZ2-U1
Create an account to install this asset package.
Maintenance Plans for Mitsubishi Outdoor Unit Model MXZ-5C42NAHZ2-U1
Integrate maintenance plans directly into your work orders in MaintainX.
Bypass Valve Coil Disassembling
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Remove the bypass valve coil fixing screw (M4 × 6)
Remove the bypass valve coil by sliding the coil upward
Accumulator Disassembling
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the cover panel (front)
Remove the cover panel (rear)
Remove the side panel (R)
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Service Panel and Top Panel Disassembling
1. Removing the service panel and top panel:
(1) Remove 3 service panel fixing screws (5 × 12), then slide the hook on the right downward to remove the service panel.
(2) Remove screws (2 for front, 3 for rear/5 × 12) of the top panel and remove it.;
4-Way Valve Coil Disassembling
Remove the service panel
Upload a photo of the removed service panel
Remove 4-way valve coil fixing screw (M5 × 7)
Remove the 4-way valve coil by sliding the coil to the right
Disconnect the connector 21S4 (green) on the multi controller circuit board in the electrical parts box
Sign off on the disassembling process
Reactor DCL Disassembling
Remove the service panel
Upload a photo of the removed service panel
Remove the top panel
Upload a photo of the removed top panel
Remove the electrical parts box
Upload a photo of the removed electrical parts box
Remove 6 screws (4 x 10) for reactor to remove the reactors
Upload a photo of the removed screws and reactors
