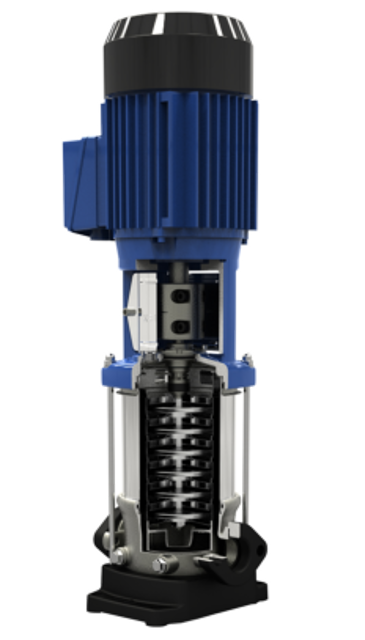

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC VCF 6B

Vent the pump and suction line before starting up the pump set.

Prime the pump and suction line with the fluid to be handled.

Service the shaft seal regularly.

Check the condition of the lubricant regularly.

Check the rolling element bearings for running noises.

⚠ WARNING — Work In The Immediate Vicinity Of Rotating Parts. Risk of hand injuries!

▷ Always have this work performed by trained personnel.

▷ Take particular caution when performing this work.

⚠ CAUTION — Contaminated Lubricating Nipples. Contamination of the lubricating grease!

▷ Clean the grease lubricating nipples before re-lubricating them.

Clean the lubricating nipples, if contaminated.

Position the grease press on the lubricating nipple.

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo nuts 920.03 and lift off the drive lantern

Remove mechanical seal 433 and O-rings 412.01

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo hexagon socket head cap screws 914.03

Remove the mechanical seal 433 using tool 969

Use suitable transport devices, lifting equipment and lifting tackle to move heavy assemblies or components.

Reassemble the pump set in accordance with the general rules of sound engineering practice.

Use suitable tools for setting the pump shaft. Consult KSB if necessary.

Reassemble the pump set in accordance with the corresponding general assembly drawing.

Check O-rings for any damage and replace with new O-rings, if required.

Remove retaining bracket 89-11.03

Attach Fig. 13: Removing retaining bracket 89-11.03
