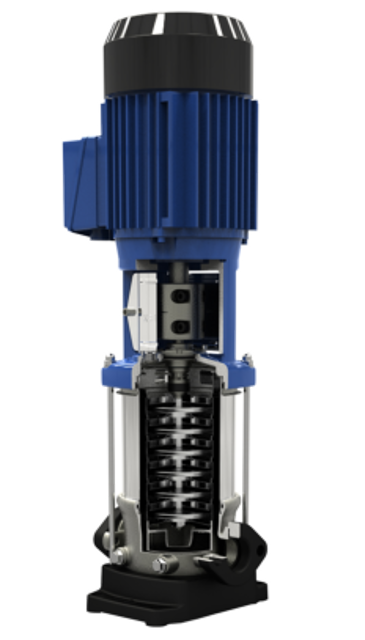

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC VCF 15B

Create an account to install this asset package.

Maintenance Plans for KSB SE & Co. KGaA High-Pressure In-Line Pump Model MOVITEC VCF 15B

Integrate maintenance plans directly into your work orders in MaintainX.

Pump Set Dismantling

Safety Precautions

Ensure only qualified personnel perform work on the pump set

Allow the pump set to cool down to ambient temperature

Use suitable transport devices and lifting equipment for heavy components

Observe all safety instructions and information

Shut down the pump set properly

Close the shut-off elements in suction and discharge line

Drain the pump and release the pump pressure

Close any auxiliary connections

Run this procedure

Rolling Element Bearing Lubrication

DANGER — Excessive Temperatures As A Result Of Bearings Running Hot Or Defective Bearing Seals. Fire hazard! Damage to the pump set!

Lubricant and Bearing Condition Check

Check the condition of the lubricant regularly.

Check the rolling element bearings for running noises regularly.

Re-lubrication and Grease Replacement

Is the pump design lubricated for life?

Enter the pump's operational hours since last lubrication.

Is the pump operated under extreme conditions such as vibrations or high temperatures?

Re-lubricate motors with lubricating nipple every 2000 hours.

Run this procedure

Mechanical Sea Installation

!CAUTION: Incorrect installation of mechanical seal. Damage to the machinery!

Ensure assembly/installation is carried out by qualified specialist personnel.

General Rules for Installing the Mechanical Seal

Work cleanly and accurately.

Remove protective wrapping of contact faces immediately before installation.

Prevent any damage to the sealing surfaces or O-rings.

Fixed Seal Installation

Insert mechanical seal 433 and O-rings 412.01.

Fit the drive lantern and screw on nuts 920.03.

Run this procedure

Motor Mounting

Safety Precautions

Suspend or support the motor to prevent it from tipping over.

Motor Requirements

Ensure the motor meets the following conditions

Motor Mounting Steps

Remove retaining bracket 89-11.03, if applicable.

Align the motor on the drive lantern.

Screw in hexagon head bolts 901.02 or 901.04 and washer 554.02 or 554.04.

Insert coupling 862 with pin 560.

Run this procedure

Pump Check

Safety Precautions

Vent the pump and suction line before starting up the pump set.

Prime the pump and suction line with the fluid to be handled.

Shaft Seal Maintenance

Service the shaft seal regularly.

Bearing and Lubricant Check

Check the condition of the lubricant regularly.

Check the rolling element bearings for running noises.

Operational Precautions

Run this procedure

Parts for KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC VCF 15B

Access the parts list for your equipment in MaintainX.

Part Name

Part Number

Gasket

400

Motor

800

Flanged Motor

801

Terminal Box Cover

81-37

Socket

81-55

Gasket

400

Motor

800

Flanged Motor

801

Terminal Box Cover

81-37

Socket

81-55

Gasket

400

Motor

800

Flanged Motor

801

Terminal Box Cover

81-37

Socket

81-55
