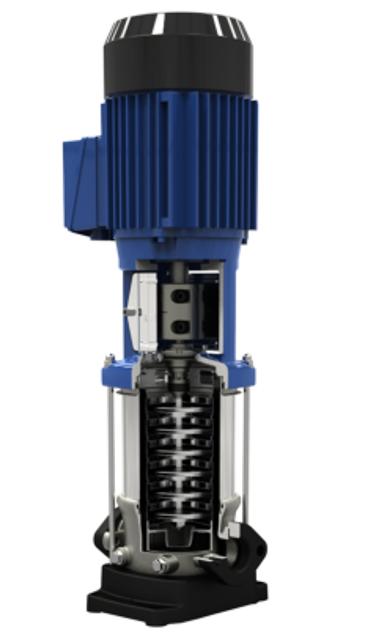

KSB SE & Co. KGaA High-Pressure In-Line Pump MOVITEC VCF 60B

Ensure only qualified personnel perform work on the pump set

Verify the pump set has cooled down to ambient temperature

Use suitable transport devices and lifting equipment for heavy components

Shut down the pump set properly

Close the shut-off elements in suction and discharge line

Drain the pump and release the pump pressure

Close any auxiliary connections

Disconnect all electrical connections from the power supply and secure against unintentional start-up

Wear safety clothing and a protective mask, if required.

Observe all legal regulations on the disposal of fluids posing a health hazard.

Collect and properly dispose of flushing fluid and any residues of the fluid handled.

Has the pump set been neutralised if it handled corrosive or flammable fluids?

Blow anhydrous inert gas through the pump to ensure drying if necessary.

Ensure the pump is not in operation before draining.

Remove retaining bracket 89-11.03

Attach Fig. 13: Removing retaining bracket 89-11.03

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo nuts 920.03 and lift off the drive lantern

Remove mechanical seal 433 and O-rings 412.01

Ensure the motor has been removed (Refer to Section 7.4.3 Page 38)

Undo hexagon socket head cap screws 914.03

Remove the mechanical seal 433 using tool 969

⚠ WARNING — Work In The Immediate Vicinity Of Rotating Parts. Risk of hand injuries!

▷ Always have this work performed by trained personnel.

▷ Take particular caution when performing this work.

⚠ CAUTION — Contaminated Lubricating Nipples. Contamination of the lubricating grease!

▷ Clean the grease lubricating nipples before re-lubricating them.

Clean the lubricating nipples, if contaminated.

Position the grease press on the lubricating nipple.
