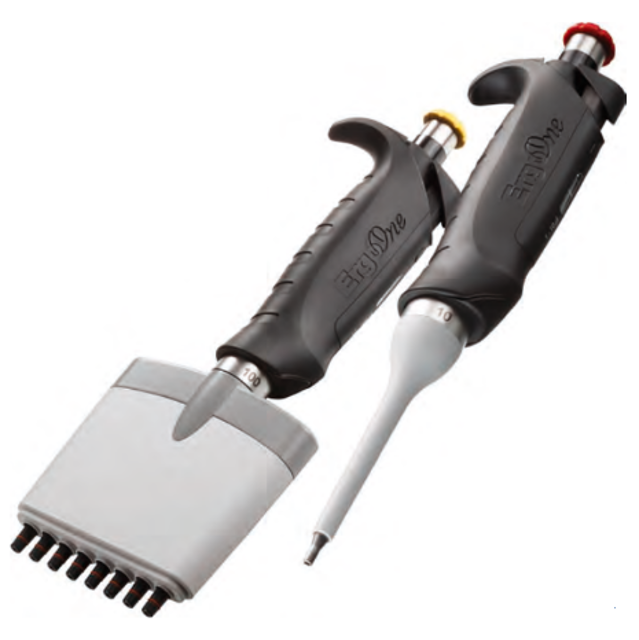

USA Scientific Adjustable Volume Pipet Single-Channel 0.1–2.5µl

Remove the sealing ring from the tip cone using the auxiliary tool

Reassemble the pipet in the reverse order

Check that all the parts are in place

Clean the internal components thoroughly

Is the piston lubrication necessary?

Lightly lubricate the piston if necessary

Additional notes or observations

Fully depress the tip ejector button and pull the tip ejector down

Unscrew the tip holder and the piston unit counter clockwise

Degrease the piston using an alcoholic disinfectant

Re-lubricate the piston with original USA Scientific piston grease

Remove the pipet filter from the tip cone

Check availability of replacement parts

Piston Unit Removal and Cleaning

Release the piston unit from the piston frame by turning it

Remove the entire piston unit from the front

Clean the piston unit externally using an alcoholic disinfectant

Re-lubricate the piston with original USA Scientific piston grease

Replace the piston unit if damaged

Loosen the tip cone by rotating it once (single-channel only)

Set autoclave temperature to 121°C

Set autoclave pressure to 1 bar

Set autoclave time to 20 minutes

Dry the pipet at low temperature
