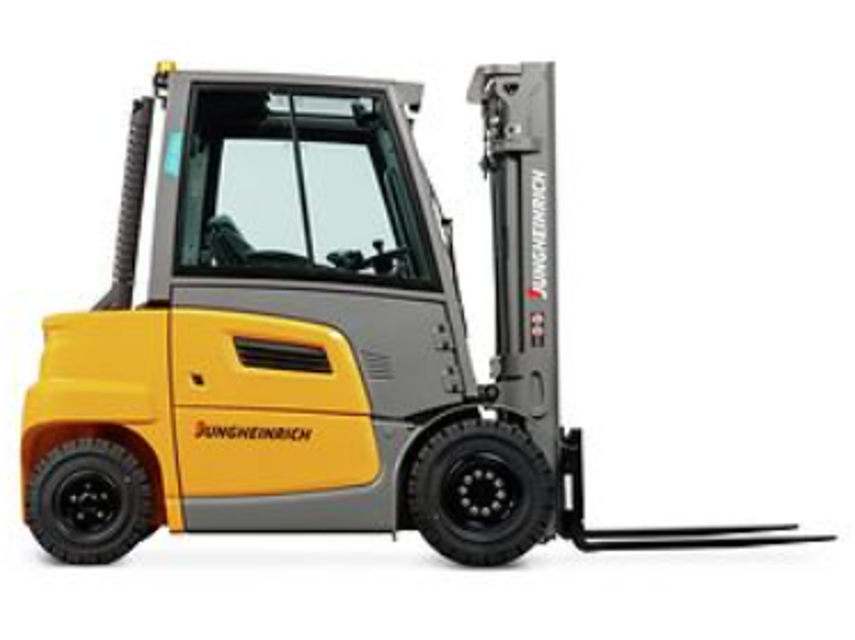

JUNGHEINRICH Industrial Truck TFG 435s

Ensure the truck is on a level surface

Use suitable lifting gear at designated points

Use a jack with a minimum capacity of 5000 kg

Take measures to prevent slipping or tipping (e.g., wedges, wooden blocks)

Use suitable tools and protective equipment for wheel replacement

Place the jack against the contact point

Park the truck securely on a level surface.

Open the rear bonnet locks and lift off the rear bonnet.

Check the coolant level on the expansion vessel.

Is the coolant level between the 'MIN' and 'MAX' markings?

Fit the rear cover and snap it back into position.

Inspect the V-belt (222) for the following issues

Is the V-belt (222) in good condition?

Was the V-belt (222) damage rectified before using the truck?

Ensure no flammable fluids are used for cleaning

Remove all deposits of flammable materials from the engine compartment

Cover all electronic system assemblies before cleaning with a pressure washer

Avoid cleaning the truck with pressurised water

Prepare the truck for maintenance and repairs

Clean the following areas with water-based solvents and water using a sponge or cloth

Dry the truck after cleaning with compressed air or a dry cloth

Turn the twist off knob (169) anti-clockwise

Pull the filter cassette (168) out in the direction of the arrow

Insert the filter cassette (168) into the heating console (167)

Turn the twist-off knob clockwise

Verify the filter cassette has been replaced and locked
